NMEA 2000® to WiFi network gateway W2K-1
for boats

NMEA 2000® to WiFi network gateway
NMEA 2000® to WiFi network gateway
Add to favorites
Compare this product


Characteristics

Options
for boats, NMEA 2000® to WiFi

Description

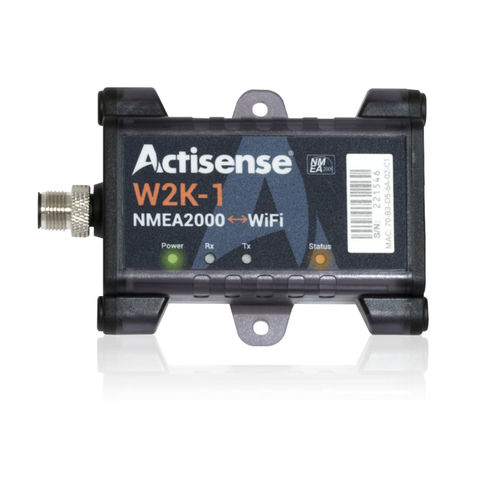

The NMEA 2000 Range W2K-1 NMEA 2000® to Wi-Fi Gateway NMEA 2000® to Wi-Fi Gateway The W2K-1 is a rugged and reliable NMEA 2000 to Wi-Fi Gateway with built-in data logger. It transfers data from an NMEA 2000 backbone to any device (e.g laptop, tablet or smartphone) connected to it via Wi-Fi and additionally can convert this data to NMEA 0183 using Actisense’s renowned conversion engine. The W2K-1 has built-in conversion of NMEA 2000 messages into NMEA 0183 sentences thus allowing a wide variety of vessel data (e.g. position, speed, course, wind speed, depth, engine data, AIS messages etc.) to be shared with NMEA 0183 compatible software applications running on connected devices. All the data received (or a selected subset) can be logged to its internal micro SD card for later downloading to use for analysing the voyage. This is very useful for analysing race data, generating logbooks, diagnosing problems or even sharing your voyage details. Approximately 16 days* of data can be stored on the pre-installed industrial grade micro SD card, which can be upgraded should the user require more storage. The W2K-1 has the legendary Actisense “Reliability Built-In” along with useful diagnostic LEDs, internal antenna, enhanced password security, full certification and all packaged in an extremely rugged IP67 case. Features Converts NMEA 2000 to/from NMEA 0183 (streamed over Wi-Fi) Supports both TCP and UDP, streams data using up to three separate data servers Data protocols are selectable to be compatible with a huge range of navigation software and apps Approximately 16 days of Voyage data recording (upgradable) Diagnostic LEDs for NMEA 2000 bus activity and Wi-Fi Status

VIDEO

Catalogs

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
