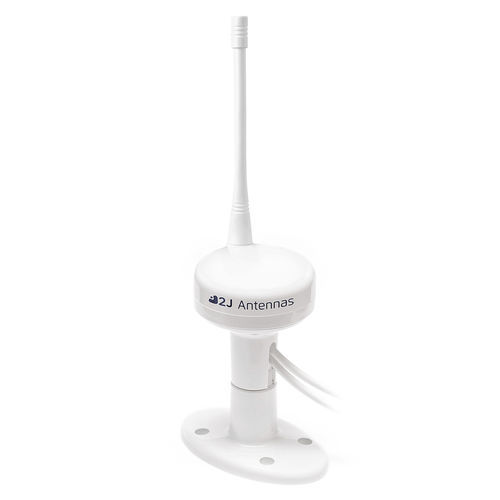

GPS antenna 2J9607JBWGF-B12JWa-B10BW
UHFfor boatsvertical

GPS antenna
GPS antenna
GPS antenna
GPS antenna
GPS antenna
Add to favorites
Compare this product


Application domain
for boats
Protection level
Frequency range

Min.: 380 MHz

Max.: 1,610 MHz


23 dB, 24 dB

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)


266 mm
(10 in)


110 mm
(4 in)


74 mm
(3 in)


Connecting the World Oceans with the Power of TETRA/UHF This high performance 2-in-1 combination antenna is designed with marine applications in mind. With configurable mounting options and ground plane independence, the 2J9607JBWGF-B12JWa-B10BW can be installed on any surface without any restrictions. Fully waterproof and a compact design will add to the aesthetics of any boat, yacht, or vessel with a high-tech presence. Suggested applications include: Boats, Yachts and Commercial Vessels Marine Critical Communications Military Vehicle Tracking & Asset Tracking Boats, Leasure Remote Technology Monitoring Geo-Fencing Navigation Surveying and Mapping Systems Connection 1: TETRA/UHF This cable caters to the TERA/UHF standards designed for mission critical systems. It is the number one choice for marine applications due to its proven reliability for on-vessel digital radio communications within 380-470 MHz frequencies. This high-performance antenna has a peak gain of ~2.0 dBi while maintaining ~25% efficiency and a VSWR ~2.2:1. Connection 2: GNSS The GNSS cable is designed for the GPS, QZSS, Galileo and GLONASS standards and is for devices that require navigational precision within 1575.42-1610 MHz frequencies. This antenna has a saw -prefilter that assures continuous signal on all planes with a max active gain of 24 dBi.
