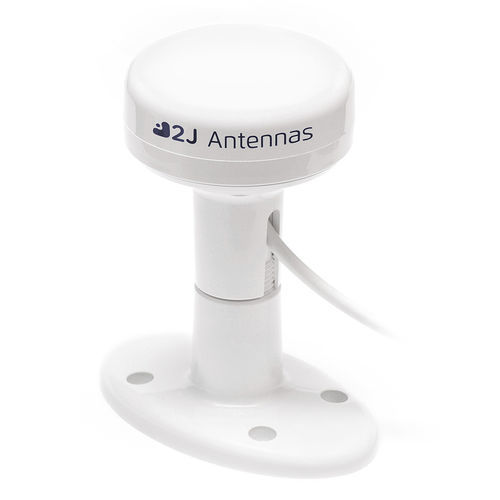

GPS antenna 2J9101JBWGF-B12JW-B10BW
GNSSfor boatsradome

GPS antenna
GPS antenna
GPS antenna
GPS antenna
GPS antenna
GPS antenna
GPS antenna
Add to favorites
Compare this product


Characteristics

Network
GPS, GNSS
Application domain
for boats
Type
radome, active
Protection level
IP67
Frequency range

Max.: 1,610 MHz

Min.: 1,575.42 MHz

Gain

23 dB, 24 dB

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

High Precision and Compact Marine Satellite Antenna Ideal For Accurate Positioning This external active GNSS antenna offers the best overall performance and it is ideal for high-performance marine applications that require improved multipath rejection and signal filtering. This antenna is built to take advantage of the GLONASS constellation of satellites as well as standard GPS. With both these systems, it guarantees improved navigation accuracy and fast positioning in transportation, defense, marine, and navigation, and other applications where precision matters. This antenna provides much higher location accuracy and is extremely reliable when it comes to reception and transmission crossing multiple networks. This is an ideal antenna for next-generation GNSS marine devices that require superior sensitivity across wide-band operations in a small form factor. Suggested applications include: Marine Military Vehicle Tracking & Asset Tracking Boats, Leasure Remote Technology Monitoring Geo-Fencing Navigation Surveying and Mapping Systems This antenna is ideal for high-accuracy applications. It provides a truly circular response over its entire bandwidth, producing excellent multi-path and out-of-band signal rejection. Additionally, enhanced performance is achieved with integrated low-loss pre-filters. This front-end SAW filter attenuates any nearby out-of-band wireless transmissions, so the GPS/Galileo LNA is not driven into compression or damage. The excellent axial ratio across the entire band indicates good right-hand circular polarization, which increases location accuracy and speed of lock for GNSS applications.
