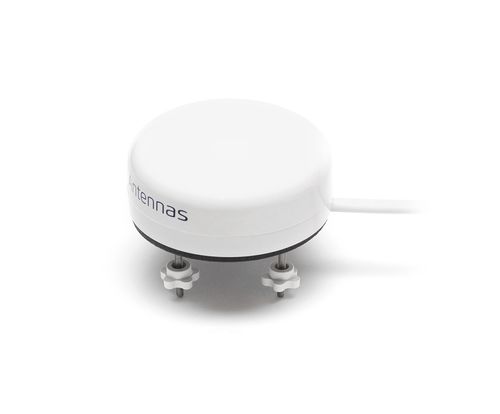

Iridium antenna 2J9126BW
for boatsradomeIP67

Iridium antenna
Iridium antenna
Iridium antenna
Add to favorites
Compare this product


Application domain
for boats
Protection level
Frequency range

Max.: 1,627 MHz

Min.: 1,616 MHz


4.5 dB

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)


74 mm
(3 in)


Combining Durability, Performance and Design with Full Access to the World’s Largest Network 2J Antennas takes pride in the quality of our antenna products and we are pleased to offer the High-Performance Iridium Certified Screw Mount Antenna (2J9126BW) that is designed specifically for marine applications. With waterproof housing, this antenna combines durability, exceptional connectivity and design appeal for voice and data satellite communications that require mission-critical reliability with full access to the world’s farthest-reaching Iridium network. The fixed 2J9126BW works well with repeaters designed to extend the reception of handheld voice and data devices. This antenna was designed to deliver exceptional connectivity for permanent marine or land applications exposed to extremely harsh and remote environments. With a high peak gain of ~4.5 dBi and ~76% consistent efficiency, this antenna assures reliable signal strength within the 1616 MHz – 1627 MHz hemispherical frequency spectrum. This antenna is right hand circular polarized (RHCP) with a <3 dB axial ratio. Suggested applications include: - Satellite Communication - Commercial or Leisure Marine - Emergency/ Safety Critical Communication - Transportation Installation / Environmental The IP67 waterproof antenna housing and base are manufactured with UV stable ABS material offering protection and resistance to dust, sand, particles, and water ingress making it an ideal solution for extreme environments with temperatures ranging between -40 C to +85 C.
