Boat actuator TA6 SERIES

single-actinghydraulic system

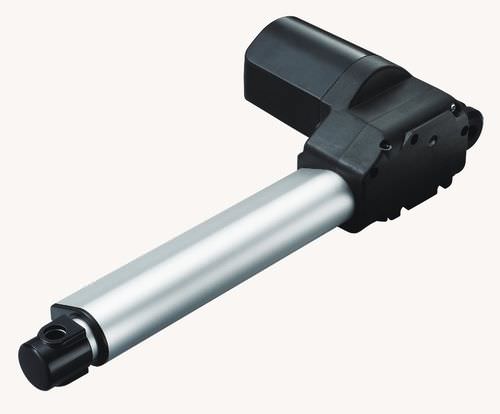

TiMOTION's TA6 series linear actuator is designed for lift applications like recliners, lifting chairs and movie theater seating. Its right angle design reduces noise and allows for fitment into most applications. Industry certifications for the TA6 linear actuator include EMC, ETL and RoHS. In addition, the TA6 is available with optional Hall sensors for position feedback. It can also be used where freewheeling push only functionality is desired. General features Voltage of motor: 12V DC, 24V DC, or 36V DC Maximum load: 6,000N in push Maximum load: 4,000N in pull Maximum speed at full load: 23.4mm/s (with 1000N in a push or pull condition) Minimum installation dimension: stroke+163mm Color: black Certificate: EMC, ETL, UL 962, and RoHS Operational temperature range: +5°C~+45°C Option: safety nut, Hall sensor(s)
