Boat actuator TA2P SERIES
single-actinghydraulic system

boat actuator
boat actuator
boat actuator
boat actuator
boat actuator
boat actuator
boat actuator
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Type
single-acting
Applications
hydraulic system

Description

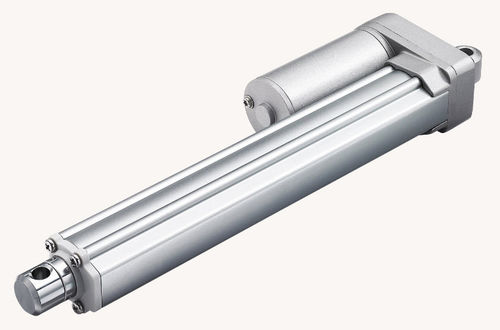

TiMOTION's TA2P series linear actuator is the high powered version of the TA2 linear actuator. A more powerful motor makes the TA2P capable of handling load ratings up to 2000N (450 pounds) while retaining its compact size. In addition to the high power motor, the TA2P linear actuator is available with multiple choices for feedback sensors. Industry certifications for the TA2P linear actuator include IEC60601-1 and ES60601-1. In addition, the TA2P is available with optional IP rating 54 or 66. General features Voltage of motor: 12V DC, 24V DC, 36V DC, or 48VDC Maximum load: 2,000N in pull/push Maximum speed at full load: 46.0mm/s (with 250N in a push or pull condition) Minimum installation dimension: stroke+108mm (with Hall sensor(s) or without output signals) Color: silver Certificate: IEC60601-1 and ES60601-1 Option: Potentiometer, Optical, Hall/Reed sensor(s) Operational temperature range: -25°C~+65°C Option: POT, Optical, Hall/Reed sensor(s)

Catalogs

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
