Boat actuator TA5 SERIES
single-actinghydraulic system

boat actuator
boat actuator
boat actuator
boat actuator
boat actuator
boat actuator
Add to favorites
Compare this product


Application domain
for boats
hydraulic system

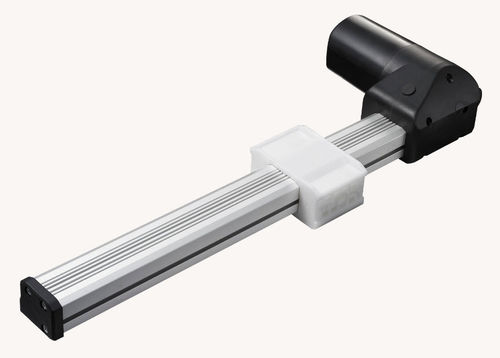

TiMOTION's TA5 series linear actuator offers an alternative to tube-style linear actuators by utilizing a linear slide to move the load, instead of a standard extension tube. This feature allows for a significantly shorter retracted length and makes the TA5 a great solution for furniture applications such as recliners or lift chairs. The TA5 linear actuator has attained EMC, UL, RoHS, and EN60601-1 certifications. Available options for the TA5 are Hall sensors and a special L-shaped mounting bracket. General features ​​Voltage of motor: 12V DC, 24V DC, or 36V DC Maximum load: 6,000N in push Maximum load: 3,000N in pull Maximum speed at no load: 58.0mm/s Maximum speed at full load: 30.0mm/s Color: black Certificate: IEC60601-1 and ES60601-1 Option: Hall sensor(s), L-shaped bracket Specially designed for recliner Outer tube assembled by 3 aluminum pieces


No catalogs are available for this product.

See all of TiMOTION Technology‘s catalogs
