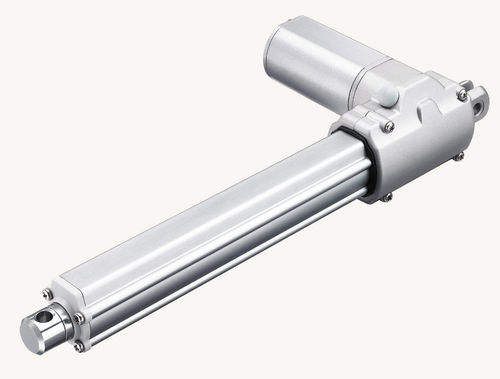

Boat actuator TA4 SERIES

single-actinghydraulic system

TiMOTION's TA4 series linear actuator is compact, quiet and powerful. It is designed to fit in an area specifically requiring a right angle motor and can be equipped with a Hall sensor for feedback. Industry certifications for the TA4 linear actuator include IEC60601-1, ES60601-1 and RoHS. In addition, the TA4 is available with an optional IP54 or 66 rating. General features Voltage of motor: 12V DC or 24V DC Maximum load: 3,500N in push Maximum load: 2,000N in pull Maximum speed at full load: 17.0mm/s (with 800N in a push or pull condition) Minimum installation dimension: stroke+140mm Color: silver IP rating: up to IP66 Certificate: IEC60601-1, ES60601-1, and RoHS Option: Hall sensor(s) Operational temperature range: +5°C~+45°C Low noise
