Single block 10-15with swivelwith becketwith ball bearing
Add to favorites
Compare this product
Characteristics
- Number of sheaves
- single
- Configuration
- with swivel, with becket
- Bearing type
- with ball bearing
- Maximum line diameter
- max. rope ø 16 mm
- Application domain
- for sailboats
- Material
- stainless steel
- Working load
1,750 kg
(3,858.1 lb)
Description

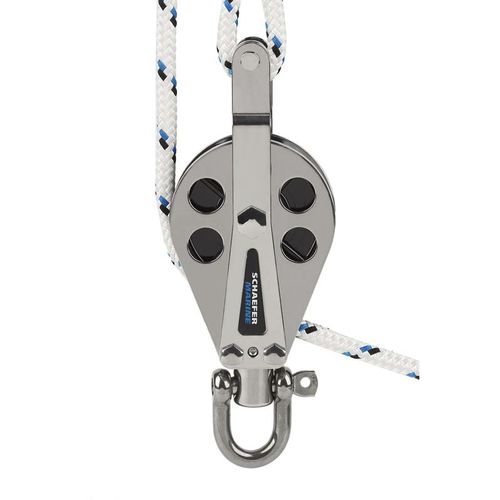

10 Series Single Block with Stainless Steel cheeks and Becket. Delrin(tm) sheave runs on Nomex(tm)/Teflon(tm) bearings for low-friction and high safe working loads. Stainless Steel D shackle run on a swivel head that may be locked in plate to avoid line twist. Removable becket allows for the use of pre-spliced line. Bolted construction allows for easy maintainence. Sheave Dia. 3 1/4" (83mm), Thickness 1 7/32" (31mm), Width 3 1/4" (83mm), Length 8 19/32" (218mm), SWL 3750 lbs (1750kg), Weight 1lb 10oz (737g), Max Line 5/8" (16mm)
