Boat receiver STI-350
acousticdirectional

boat receiver
boat receiver
boat receiver
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Function
acoustic
Other characteristics
directional

Description

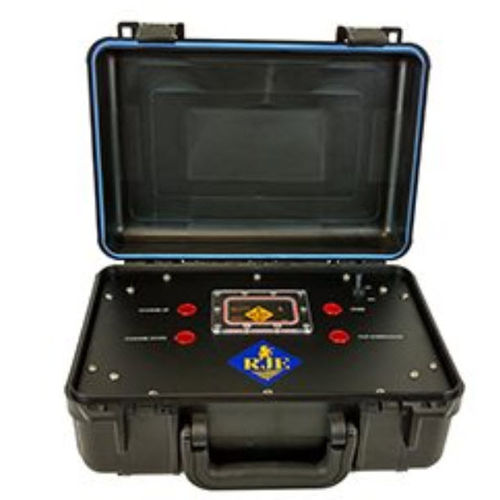

This rugged directional receiver provides range and bearing to the ATT-400 series of transponders or acoustic pingers operating from 8kHz to 45kHz. Designed for small boat operations, the STI-350 uses a directional hydrophone and adjustable staff assembly to locate underwater locations or targets marked with an acoustic beacon or ATT-400 transponder. Passive Mode RECEIVER BANDWIDTH 8 to 45kHz in 100Hz increments Active Mode TRANSMIT FREQUENCY 26kHz RECEIVE FREQUENCY 27,28,29,30,31,32,33, 34kHz ACOUSTIC OUTPUT 190dB ACOUSTIC SIGNAL Coded SYSTEM RANGE WITH ATT-400 TRANSPONDER 750 meters (2,461ft) TRANSDUCER/HYDROPHONE Directional DISPLAY LCD GRAPHIC USER INTERFACE Range or Signal Strength, Bearing Indicator to Target, Channel Indicator, Low Battery CONTROL SWITCHES Sealed Switches BATTERY Rechargeable OPERATIONAL LIFE 6 hours POLE ASSEMBLY 3m Length CABLE ASSEMBLY 6m with connectors HOUSING Waterproof to IPX4 SIZE 28cm(L) x 25cm(W) x 13cm(H) WEIGHT In Air: 4.3kg (9.5lbs)
