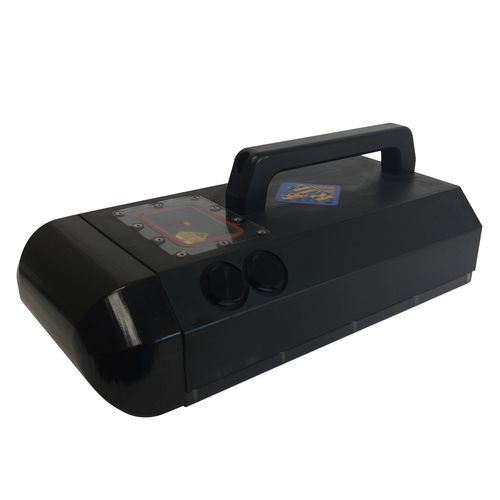

Boat receiver DTI-300

underwateracoustic

Using a highly visible LCD display and electronic compass, the DTI-300A acoustic receiver provides range and bearing to underwater locations marked with the ATT-400 transponder or an acoustic pinger operating between 25kHz to 45kHz. Passive Mode RECEIVER BANDWIDTH 8 to 45kHz in 100Hz Increments Active Mode TRANSMIT FREQUENCY 26kHz RECEIVE FREQUENCY 25, 27,28,29,30,31,32,33, 34kHz ACOUSTIC OUTPUT 190dB ACOUSTIC SIGNAL Coded SYSTEM RANGE 750 meters (2,461ft) Electronic Compass ACCURACY <0.5° to 1.5° RMS REPEATABILITY ± 0.3° DISPLAY LCD GRAPHIC USER INTERFACE Range or Signal Strength, Compass Bearing, Bearing Indicator to Target, Channel Indicator, Low Battery BATTERY Rechargeable OPERATIONAL LIFE 6 hours CONTROL SWITCHES Sealed Piezo-ceramic DEPTH RATING 100m (328ft) HOUSING Delrin SIZE 33cm(L) x 18cm(W) x 7cm(H) 13in(L) x 7in(W) x 3in(H) Weight IN AIR 5kg (11lbs) IN WATER -0.185kg (-0.5lbs)
