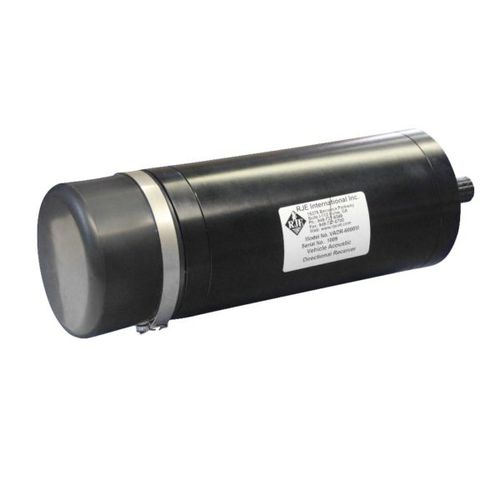

ROV receiver VADR-6000M

underwateracousticdirectional

The SEEKER acoustic directional receiver is a small but rugged passive pinger receiver used to assist operators of ROVs and AUVs in tracking acoustic sound sources from 25Khz to 40Khz. In addition, the SEEKER receivers can function as an acoustic tran-sponder interrogator and provide accurate range and bearing to targets marked with a line of custom acoustic transponders. There are two different models of SEEKER receiv-ers. The VADR1000M operates to depths of 1000 meters and the VADR6000M can with-stand depths of 6000 meters. Specifications Downloads GET STARTED Pinger Receiver Mode RECEIVE BANDWIDTH 8 to 45kHz in 100Hz increments RECEIVER SENSITIVITY -100dB ref 1μPa @ 1 meter Transponder Mode RECEIVE FREQUENCIES 25, 27, 28, 29, 30, 31, 32, 33, 34kHz INTERROGATION FREQUENCY 26kHz ACOUSTIC OUTPUT 190dB ref 1μPa @ 1m ACOUSTIC SIGNAL Coded SYSTEM RANGE up to 750m (2,461ft) Directional Hydrophone BEAM WIDTH 40 ± 5 degrees Conical BEARING INDICATION 4 BINS: Left or right, 3, 8, 20 or > 20 degrees BEARING ACCURACY 5 degrees nominal in BINS 1 and 2 BEARING RESOLUTION 2 degrees Control Interface RS232 9600 Baud, No Parity, 8 Data Bits, and 1 Stop Bit CONNECTOR 5 pin Underwater Pluggable INTERFACE SOFTWARE Microsoft OS, Provided INPUT VOLTAGE 18 to 32VDC, 24VDC nominal Mechanical/Environmental HOUSING Aluminum Hard Coat Anodized DEPTH RATING 6,000m (19,685ft) WEIGHT 6.8kg (15lbs) in air/5.5kg (12lbs) in water DIMENSIONS 12.7cm(Ø) x 28.0cm(L) (5.00in(Ø) x 11.0in(L)) OPERATING TEMPERATURE RANGE -18°C to 43°C (0°F to 110°F) Specifications are subject to change without notice
