Capture the magic of your own underwater aquarium beneath your boat with the superior quality Ocean camera. Watch for boat on your salon TV or Plasma boat screen all the nightlife around, be amazed at the variety of fish and sealife attracted to the LED underwater marine lights.
The Ocean camera can also be used in conjunction with the onboard security system for your vessel offering 24 hour underwater surveillance.
The Ocean Camera is designed for fiberglass (GRP) hulls and can be fitted to aluminum or Steel hulls utilizing the optional Delrin Isolating sleeve.
We can also incorporate the camera into our Weld-IN fixtures for metal hulled vessels on special request.
|
|
Imagine schools of nurse sharks, fish, marlins, sailfish, dolphins and tuna coming right up to your boat!
The fish have come up to your boat...now what?
You've got to get their picture! Smile and say "plankton" :-)
TV SYSTEM: NTSC/PAL
IMAGE SENSOR: 1/4" CCO image sensor
CCD TOTAL PIXELS: 542(H) 496(V)/542(H)586(V)
CCD EFFECTIVE PIXELS: 512(H) 492(V)/512(H)58
SCANNING SYSTEM: 525 lines, 60 fields/sec.
SYNC SYSTEM: Internal
RESOLUTION: 470 TV Lines
VIDEO OUTPUT: 1.0Vp-p Composite video @ 75ohm
POWER SUPPLY: DC 12V/260mA (LED) |
|
The completely waterproof camera can be installed in any of the boat underwater light housings for steel, aluminum or fiberglass hulls. The camera is placed in the housing and fixed with a mounting kit. It has exterior focus and zoom marine rings from 0.16" to 0.31"/ 4.0mm to 8.0mm, it offers broadcast quality pictures are 470 color lines of resolution and is 110 A/C or 12 VDC. The underwater images can be fed to any number of monitors or plasma screens for boats through out the boat. The camera comes with a three year warranty and all maintenance, like the underwater lights for boats is from within the hull. This underwater camera is perfect for viewing the aquatic life, as well as offering safety and security benefits.
|
|
The LUMA-Vu Underwater Camera continues AQUALUMA's commitment to enhancing your boating experience.
Imagine watching the aquatic life under the surface from the comfort of your saloon or bridge. The possibility of recording the tagging of that big marlin from a prospective never before available to you. Flick the switch for boat on your AQUALUMA Underwater Boat lights and the show will continue into the night with the fish and squid schooling in the light. You may never sailboat watch a movie again.
Manufactured with the proven the AQUALUMA 3 series corrosion proof, injection molded polycarbonate housing, this Hi Res Color CCTV camera is virtually bullet proof. The LUMA-Vu comes in either NTSC or Pal Formats with a very wide angle 3.6mm lens. Get onboard with the future of Underwater technology with AQUALUMA's LUMA-Vu! |
|
| The Thru-Hull SeaCam® is a color camera designed to mount thru the transom or hull of your boat, below the waterline, allowing for an exciting new view of your underwater surroundings. The Thru-Hull SeaCam® is a wide-angle, fixed focus boat video camera that offers a high quality image, which can be routed to one or more displays on your boat. With a resolution of 460 horizontal TV lines and scene illumination of 0.2 Lux, this camera produces professional quality video, even at low light levels. The sapphire crystal port is one of the most durable and scratch resistant transparent materials available, ensuring a crisp, clear image. |
|
| ... products without information |
| |
Capture the magic of your own underwater aquarium beneath your boat with the superior quality Ocean camera. Watch for boat on your salon TV or Plasma boat screen all the nightlife around, be amazed at the variety of fish and sealife attracted to the LED underwater marine lights.
The Ocean camera can also be used in conjunction with the onboard security system for your vessel offering 24 hour underwater surveillance.
The Ocean Camera is designed for fiberglass (GRP) hulls and can be fitted to aluminum or Steel hulls utilizing the optional Delrin Isolating sleeve.
We can also incorporate the camera into our Weld-IN fixtures for metal hulled vessels on special request.
|
|
Imagine schools of nurse sharks, fish, marlins, sailfish, dolphins and tuna coming right up to your boat!
The fish have come up to your boat...now what?
You've got to get their picture! Smile and say "plankton" :-)
TV SYSTEM: NTSC/PAL
IMAGE SENSOR: 1/4" CCO image sensor
CCD TOTAL PIXELS: 542(H) 496(V)/542(H)586(V)
CCD EFFECTIVE PIXELS: 512(H) 492(V)/512(H)58
SCANNING SYSTEM: 525 lines, 60 fields/sec.
SYNC SYSTEM: Internal
RESOLUTION: 470 TV Lines
VIDEO OUTPUT: 1.0Vp-p Composite video @ 75ohm
POWER SUPPLY: DC 12V/260mA (LED) |
|
The completely waterproof camera can be installed in any of the boat underwater light housings for steel, aluminum or fiberglass hulls. The camera is placed in the housing and fixed with a mounting kit. It has exterior focus and zoom marine rings from 0.16" to 0.31"/ 4.0mm to 8.0mm, it offers broadcast quality pictures are 470 color lines of resolution and is 110 A/C or 12 VDC. The underwater images can be fed to any number of monitors or plasma screens for boats through out the boat. The camera comes with a three year warranty and all maintenance, like the underwater lights for boats is from within the hull. This underwater camera is perfect for viewing the aquatic life, as well as offering safety and security benefits.
|
|
The LUMA-Vu Underwater Camera continues AQUALUMA's commitment to enhancing your boating experience.
Imagine watching the aquatic life under the surface from the comfort of your saloon or bridge. The possibility of recording the tagging of that big marlin from a prospective never before available to you. Flick the switch for boat on your AQUALUMA Underwater Boat lights and the show will continue into the night with the fish and squid schooling in the light. You may never sailboat watch a movie again.
Manufactured with the proven the AQUALUMA 3 series corrosion proof, injection molded polycarbonate housing, this Hi Res Color CCTV camera is virtually bullet proof. The LUMA-Vu comes in either NTSC or Pal Formats with a very wide angle 3.6mm lens. Get onboard with the future of Underwater technology with AQUALUMA's LUMA-Vu! |
|
| The Thru-Hull SeaCam® is a color camera designed to mount thru the transom or hull of your boat, below the waterline, allowing for an exciting new view of your underwater surroundings. The Thru-Hull SeaCam® is a wide-angle, fixed focus boat video camera that offers a high quality image, which can be routed to one or more displays on your boat. With a resolution of 460 horizontal TV lines and scene illumination of 0.2 Lux, this camera produces professional quality video, even at low light levels. The sapphire crystal port is one of the most durable and scratch resistant transparent materials available, ensuring a crisp, clear image. |
|
Distibutor range LORENZ marinades boat electronics in France:
NAVICOM http://www.navicom.fr/ |
|
The IM-SCU-LED dual camera/light wand unit comprises the standard Scubar camera / LED module with a secondary module made up of 15 hi-bright white LEDs.
Both modules are fixed to the wand handle by a flexible neck section that lets the operator direct light and adjust the camera view as desired.
Like the standard Scubar camera wand, the IM-SCU-LED wand can be used as a handscope or plugged into the extension for boat pole.
The IM-SCU-LED is the perfect solution for extreme low light searches and inspections. |
|
The IM-SCU-10 system is supplied as per the standard system with the 3 meter to 10 meter telescopic extension for boat pole option. The standard pole is also supplied for convenience.
When collapsed, the IM-SCU-10, which as per the standard pole comprises three sections, measures 3 meters and comes supplied in a padded canvas carry case for boats.
Operation of the longer pole is exactly the same as the standard pole, with compression clamps fitted to each section of the pole allowing the user to set the desired length. |
|
The IM-SCU-FS Scubar system incorporates the features of the standard Scubar and Scubar-R systems in a high visibility yellow and red colour scheme, specifically produced for the emergency services.
Cables for boats are also supplied with 90 degree metal connectors for boats to prevent damage to cables during operation in extreme conditions.
A wireless video transmitter can also be built into the monitor case for boats that beam pictures directly back to support unit up to 100 meters away (line of sight). |
|
The standard Scubar system is supplied with the following components:
Camera Wand Unit
High resolution colour CCTV camera with in-built LED illumination. The LED are automatically controlled by a photoelectric diode which operates below 0.4 lux.
Waterproof to 40 meters, the camera is fixed to a 12" manually flexible neck section that joined in turn to the wand handle. This allows the camera to be manipulated into the desired position.
Telescopic Extension for boats Pole
Three stage lightweight extension pole constructed from spun glass fibre. Each section measures 1.5 meters, allowing full extension to 4.5 meters. Compression clamps fitted to each section let the used fix the pole at the desired length.
Monitor / Battery Pack
Power for the monitor and camera is provided by rechargeable sealed lead acid marine batteries contained in the monitor case for boats, which is constructed from hardwearing but lightweight materials. The 5.6" colour TFT boat screen sits in a foam moulding that also secures the batteries and internal circuitry.
Battery / Charger for boat Information
12vdc Sealed Lead Acid batteries provide around two hours continual operation between charges.
Cables for boats
Camera Wand and extension pole cables are fitted with military grade fully waterproof IP68 connectors for boats and reinforced internally with a waterproof silicon compound.
Equipment for boats Marine bags
The telescopic extension pole and Camera Wand unit is supplied with a padded canvas carry-case. |
|

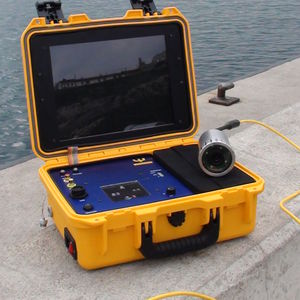

The IM-SCU-R 'Rugged Scubar' is a more 'professional' version of the standard Scubar system.
The lightweight canvas monitor / battery unit is replaced by a tough Storm case for boat into which the 5.6" colour TFT marine screen, batteries for boats and internal circuitry are housed. The case itself is fully waterproof and when secured, sealed to IP68.
Built in camera/charger and video output connectors for boats are flush mounted waterproof military grade, and new cables are supplied accordingly.
Like the standard monitor/battery pack, a sun-visor and splash-shield is built into the case, which can be viewed as a neck-worn device or free standing.
The power switch and battery level meter are mounted inside the case to prevent accidental operation and subsequent battery drain. An auto battery-off feature is also built in for this purpose.
Scubar-R systems have facility to incorporate the IM-SCU-DVR digital media recorder which is available separately. |
|
Supplied in a rugged waterproof Storm case for boat, the IM-SCU-SYS system, sometimes referred to as the 'Super-Yacht Scubar', is the perfect way for re-sellers and distributors to demonstrate the benefits and functionality of Scubar.
This package comprises the standard Scubar system as well as all accessories currently available. These include:
IM-SCU-LED Dual Camera / Secondary LED head
IM-SCU-MAG Dual Camera / Magnet head
IM-SCU-DVR Digital Media Recorder
The system is also sent with both 4.5 meter and 10 meter pole options. |
|
