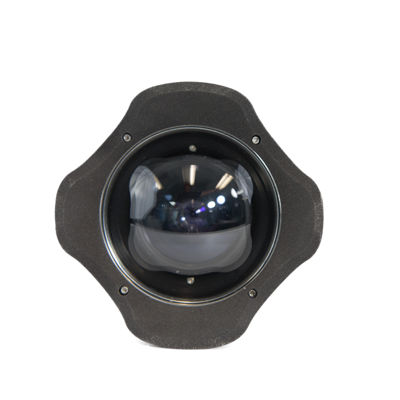

ROV/AUV video camera C600 COLOR
underwaterHDwith zoom

ROV/AUV video camera
ROV/AUV video camera
ROV/AUV video camera
ROV/AUV video camera
Add to favorites
Compare this product

Characteristics

Application domain
ROV/AUV
Type
underwater
Technology
HD
Other characteristics
with zoom

Description

Features The C600 is an oceanographic HD color camera with 30x optical zoom. Several HD formats are available and it features a 6,000 meter depth rating, 12-36 VDC power, Titanium housing, and a 80° field of view. The C600 has a 2-year warranty and various connector options. Key Specifications Market: Subsea, Oceanographic Uses: ROV’s, research, oil & gas Resolution: 1080i HD Field of view (water): 80° (Diagonal) Sensitivity: 0.1 lux Sensor: 1/3″ Sony Focus: Auto / Manual Iris control: Auto / Manual Lens: f1.0 – 2.0 Video output: User Selectable 1080i, 1080P, 720P, NTSC, PAL; Format: HD or SD Depth rating: 6,000 meters (19,685 ft) Housing material: Titanium Size: 3.6″D x 10.1″L (91.44 mm x 256.54 mm) Weight: Air: 6.8 lbs (3 kg); Water: 3.1 lbs (1.4 kg) Operating temp.: 22° – 100°F (-5 – 38°C); storage: 22° – 100°F (-20° – 60°C) Viewing port: BK-7 Glass Dome Control: RS-232 Voltage: 12 – 36 VDC Current: 700 mA Connectors: Various connectors available Warranty: 2-year
