Reba presents his new range of hidreulic gangways.
Entureli Made in Italy, they reach to combine funcyionality, reliability and design with an excellent value.
Caracteristics:
Made in polished AISI 316 stainless steel
Circular profile
Teak walking surface.
12 or 24 V power supply
Equipped with remote control
|
|
model 1103
Three sections with advanced hinging system
Extending box gangway with three sections and an advanced hinged trolley system that allows the centre of inclination to be shifted making this model particularly suited for installation within the transom stairs. Constructed in AISI 316 L stainless steel and teak, with manual or automatic stanchions, standard versions are available in twelve different lengths and designed for passenger boarding only up to a maximum of 150 kg (330 lbs). Upon request this model may also be equipped to lift tenders or acquascooters up to a maximum weight of 150 kg (330 lbs).
|
|
Model 5995
Composed of two sections, this gangway also has teak courtesy landing section and a personalised fixing plate for hinging to the transom. Available in two lengths with automatic stanchions on the port side and a standard lift capacity of up to 450 kg.
|
|
Gangway with rotating actuator - model 8999
Hydarulic telescopic gangway with a rotating actuator as opposed to a piston cylinder. Movement of the gangway is controlled by an actuator incorporated within the stern hinging system. This system allows for 90° inclination both upwards and downwards, occupies limited space at the stern thus offering greater manoeuvrability while also maintaining a lifting capacity of up to 450 kg.
|
|
model 3883 Maxi Dolphin
lifts tenders or acquascooters up to 620 lbs
Hydraulic telescopic gangway in aluminium and teak. Though lightweight and economic this gangway can lift between 330 and 620 lbs. The first section can be orientated 45° upwards and 40° downwards and the second section is telescopic. Designed in three different lengths, each is supplied with automatic stanchions and thenewly designed anti-skid chequered footway, patented by Opacmare, that features exceptional drainage characteristics.
|
|
|

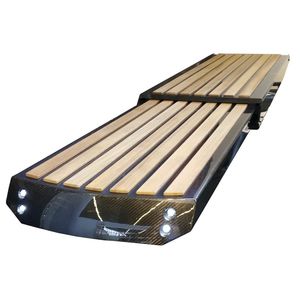

This lightweight telescopic gangway is built completely in carbon fibre. It consists of a telescopic plank, a main plank, a carrier and an open rail system. The rail system can be connected directly to the deck structure. Reinforcements are only necessary in loaded (exented) condition. The main plank together with the telescopic part is able to move 15° up and 10° down. Both planks are covered with teak (optionally sanded surface). The telescopic part is equipped with either two quay rollers of composite shoes for rolling or sliding on the pier.
|
|
model 3800 POPUP
built-in with a pantograph folding system
Built-in telescopic transom gangway with a hydraulic pantograph retracting system.
Constructed in aluminium, this gangway is ideal for mooring at various levels as the second element is telescopic and the pantograph system raises the first element by 25°. In the case of floating or low moorings the pantograph system can be left in its housing and the gangway used horizontally.
Fully customizable and adaptable to the dimensions of the transom, the walkway can be finished in either teak or fibreglass to blend in perfectly with any platform. Designed for passenger boarding only. Maximum capacity 330 lbs
|
|
|
|
|
|
|
The new hydraulic gangway Dolphin SHADE in aluminum perfectly answers to the requirements of lightness, design and adaptability demanded from the small units. It has two sections, before is adjustable until to 20° towards the high and 15° towards the low, the second section is telescopic. It is produced in five lengths (1,9 - 2,4 - 2,7 - 3 and 3,3 meters), is complete of stanchions automati to us and concurs only the access with edge for a cargo total of 150 kg.
SHADE exactly arrives a year after the restyling of the series of external gangways in aluminum - Ecodolphin, Dolphin Miniums, Dolphin and Maxi Dolphin- and of the introduction to catalog of the Twister, two rotary gangways called Mini and Maxi Twister, ciascuna in three various lengths.
All the Dolphin series carefully is planned in order to satisfy the demands for the owners of small units to sail and engine that they want to be able to approach edge with elegance and facility without to penalize the balance of the boat; their structure in aluminum is much light one and the communication trench is in teak patented anti-skid. It is possible to personalize them with echo-compatible varnishes to water.
Ecodolphin - mod 3333 (manual, from 1,50 to 2,55 m. 15-22 kg)
Miniums Dolphin - mod 3443 (to hydraulic movement, from 1,60 to 2,60 m. it raises until to 160 kg)
Dolphin - mod 3773 (to hydraulic movement, from 1,90 to 2,60 m. it raises until to 200 kg)
Maxi Dolphin - mod 3883 (to hydraulic movement, from 2,30 to 2,90 m. it raises until to 280 kg)
Miniums Dolphin Twister - mod 3453 (with rotary turret, from 2 to 2,70 m.)
Maxi Dolphin Twister - mod 3893 (with rotary turret, from 2,80 to 3,30 m.)
Dolphin Shade - mod 3793 (to passing, from 1,90 to 3,30 m.)
|
|
- all movements fully hydraulic (turning, up/down, in/out)
- cantilever
- turning up to 120° possible
- base material bright polished
- remote control with 6 channel transmitter
- stable or rope railing
|
|
Retracting three-stage telescopic gangway with automatic stanchions
and courtesy lights. Automatic movement with hydraulic piston and infrared device with remote control. Complete automation of the retracting phases with control logic for the various sequences. Coated stainless steel or polished stainless steel structure. Complete with load-bearing structure and storage box in the retracted position. Supplied with electro-hydraulic power pack and footboard with teak grating.
|
|
Our design philosophy is that the passerelle is the yacht’s grand entranceway, providing the owners and guests their first experience with the yacht and the pending yachting experience. The passerelle must be constructed in a style and quality commensurate with that of the yacht. The passerelle must be sturdy and steady while boarding; a guest should not feel the passerelle deflecting or moving under-feet while boarding. Once one boards a Nautical Structures’ passerelle the feeling should be as if one was already on the yacht’s deck. We understand that for some persons, crossing over ten to twelve feet of open water is an unnerving experience, so the passerelle should provide an enhanced level of security and well-being while boarding. Nautical Structures passerelles always include rigid hoop-railing systems that will support the weight of an individual returning from an evening of libations!
|
|
|
For many years Cooney have produced hydraulic passerelle as a motor-yacht accessory that positively projects quality - unashamed luxury but nonetheless totally functional. Built with Mediterranean 'stern to' mooring in mind, these units not only give simple boarding but also provide effective dingy retrieval to the bathing platform, and improved security when used with a pocket radio control from the tender.
|
|
|
|
