Boat gangway 3893S seriestelescopicrotatinghydraulic
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Application domain
- for boat
- Type
- telescopic, rotating
- Operation
- hydraulic
- Structural material
- aluminum
- Folded length
2.8 m
(9'02" )- Maximum length
3.3 m
(10'09" )- Weight
128 kg, 135 kg, 142 kg
(282.2 lb, 297.6 lb, 313.1 lb)- Maximum payload
150 kg, 250 kg
(331 lb, 551 lb)
Description

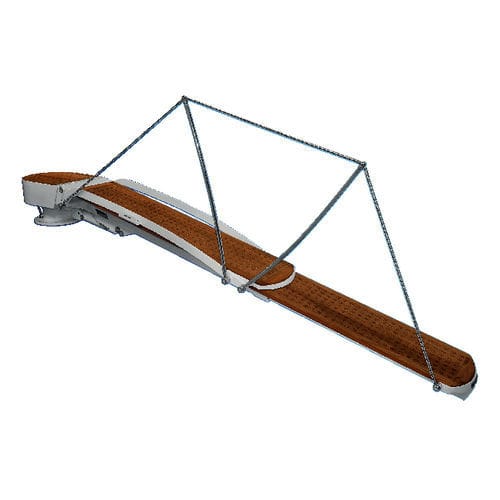

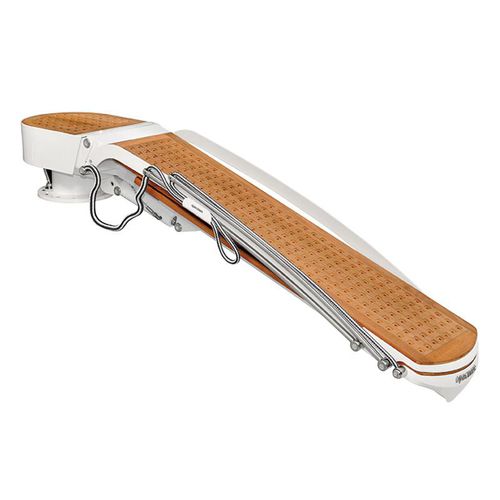

Maxi dolphin twister The passerelle with load capacities ranging from 150 up to 250 kg. Three-section rotating ultra light-weight aluminium passerelle supplied with automatic stanchions on the port side. These Three-section passerelles hydraulically handled have a first element which features + 40° / – 22° working angles and a second telescopic element. Available in three lengths from 2,80 to 3,30 m (110″ to 132″ inch) and load capacities ranging from 150 up to 250 kg (from 330 up to 550 lbs).
