straight shackle for sailboats / with captive pin / forged / stainless steel
straight shackle for sailboats
307-097

SHACKLE ø8/ø6X13X21 ST Specifications Weight: 33.00 g

straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats
307-004

Specifications Weight: 196.00 g Width: 24 mm Height: 41 mm PinDiam: 12 mm

straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats
00167-05

SHACKLES “D” TYPE STAINLESS STEEL Code 167-05, Diameter mm 5, W x L mm 10 x 19 Code 167-06, Diameter mm 6, W x L mm 12 x 25 Code 167-08, Diameter mm 8, W x L mm 16 x 32 Code 167-10, Diameter mm 10, ...

straight shackle for sailboats / stainless steel
straight shackle for sailboats

General description Wichard D shackle fully forged in High Resistance stainless steel (17/4 PH); Used as terminal on top swivel. On standard for NEX 0.9 and NEX 1.5 Option for NEX 2.5 and NEX 5.0

straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats
1202

... -locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads Applications Standard ...

straight shackle for sailboats / forged / titanium
straight shackle for sailboats
51203TI

Commentary Self-locking shackle forged in Titanium TA6V Important weight savings (up to 40%) The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working ...

straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats
11203HR

Commentary "D" shackle forged in HR 17.4 Ph stainless steel High working and breaking loads Designed to support high loads Applications Designed to be used on large ocean-going monohulls and multihulls ...

straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats
924407 / 924408

straight shackle for sailboats / forged
straight shackle for sailboats
80C

Crickets to brass lyre Specifications Art. Dim. Finishing 80 c.L M6 Lucido

straight shackle for sailboats / stainless steel
straight shackle for sailboats
court A4

straight shackle for sailboats / long / stainless steel
straight shackle for sailboats
A4

straight shackle for sailboats / stainless steel
straight shackle for sailboats
semi rond

straight shackle for sailboats / stainless steel
straight shackle for sailboats
plate court

straight shackle for sailboats / high-speed / stainless steel
straight shackle for sailboats

straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats

straight shackle for ships / anchor chain / forged / stainless steel
straight shackle for ships

straight shackle for sailboats / with captive pin / stainless steel / forged
straight shackle for sailboats
8969

straight shackle for sailboats / high-speed
straight shackle for sailboats
8323

straight shackle for sailboats / forged
straight shackle for sailboats
GHR06

straight shackle for sailboats / forged
straight shackle for sailboats
GHR08

straight shackle for sailboats / forged
straight shackle for sailboats
GHR10

straight shackle for sailboats / forged
straight shackle for sailboats
GHR12

straight shackle for sailboats
straight shackle for sailboats
economic

shackle for sailboats with captive pin / straight
shackle for sailboats with captive pin
8171X

straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats
308X / 309X

shackle for sailboats with captive pin / straight
shackle for sailboats with captive pin
30XX-SICU

shackle for sailboats with captive pin / straight / forged / stainless steel
shackle for sailboats with captive pin
GS360

D Shackle With Collared Pin SIZE: 4mm---25mm Forged Material : AISI316 & AISI304 Surface Treatment: "EP"(Electro Polished )

See the other products
GMTmarine
straight shackle for sailboats / stainless steel
straight shackle for sailboats
GS360B

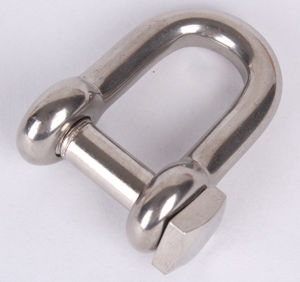

D Shackle With Square Head Pin SIZE: 4mm---25mm Forged Material : AISI316 & AISI304 Surface Treatment: "EP"(Electro Polished )

See the other products
GMTmarine
straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats
GS362

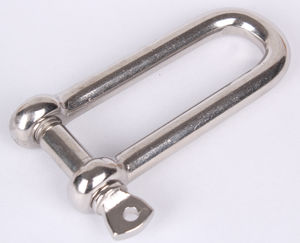

D Shackle with Long Type SIZE: 4mm---25mm Forged Material : AISI316 & AISI304 Surface Treatment: "EP"(Electro Polished )

See the other products
GMTmarine
shackle for sailboats with captive pin / straight / stainless steel
shackle for sailboats with captive pin
GS364LK

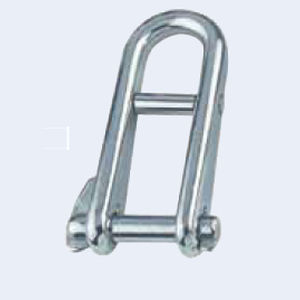

Headboard Shackle Cross Bar with Locking Pin SIZE:6MM;8MM;10MM;12MM Casting Material: AISI316 Surface Treatment:"EP"(Electro Polished)

See the other products
GMTmarine
shackle for sailboats with captive pin / straight / stainless steel
shackle for sailboats with captive pin
GS365DLK

Hayard Shackle Cross Bar with Locking Pin SIZE:5MM ;6MM;8MM Casting Material: AISI316 Surface Treatment:"EP"(Electro Polished)

See the other products
GMTmarine
straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats
IPC 701X series

straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats
IPC 708X series

straight shackle for ships / joining / anchor chain / forged
straight shackle for ships
D15

Material : Forged alloy steel quenched and tempered Safety factor : 5 times Finish : Painted Temperature range : -40°C up to +200°C; Polar Rated Standard certification : Certificate of Conformity 3.1 material certificate EN 10204

See the other products
GN Rope Fittings
straight shackle for ships / joining / anchor chain / forged
straight shackle for ships
H11

Material : Forged alloy steel quenched and tempered Safety factor : 5 times Finish : Galvanised with stainless steel cotterpins Temperature range : -40°C up to +200°C; Polar Rated Standard certification : Certificate of Conformity 3.1 ...

See the other products
GN Rope Fittings
straight shackle for ships / joining / anchor chain
straight shackle for ships
H12

Material : Body: High tensile steel Pin: Alloy steel quenched and tempered Finish : Painted Temperature range : -20°C up to +200°C Standard certification : Certificate of Conformity 3.1 material certificate EN 10204

See the other products
GN Rope Fittings
straight shackle for ships / joining / anchor chain
straight shackle for ships
D10

Material : High tensile steel Finish : Self coloured Temperature range : -20°C up to +200°C Standard certification : Certificate of Conformity

See the other products
GN Rope Fittings
straight shackle for ships / joining / anchor chain
straight shackle for ships
D11-12-13

Material : High tensile steel Finish : Self coloured/galvanised Temperature range : -20°C up to +200°C Standard certification : Certificate of Conformity

See the other products
GN Rope Fittings
straight shackle for ships / anchor chain
straight shackle for ships

‘D’ shackles are the essential accessory within your anchor chain arrangement. Produced to ISO 1704 standards, the D-shackle is the class required connection between the swivel forerunner and the crown ...

straight shackle for sailboats
straight shackle for sailboats
2761

Stamped shackles are used on most Harken Small Boat Blocks and are appropriate for low loads. For higher loads, select forged and high-resistance shackles instead.

See the other products
Harken
straight shackle for sailboats / halyard / flat / stainless steel
straight shackle for sailboats
2107

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. These shackles have a secondary pin to keep the shackle permanently secured ...

See the other products
Harken
straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats
01.080.XX series

Made of AISI 316 stainless steel; enables the anchor to fit into stemheads without getting tangled.

straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats
S360

... Forging material : AISI304 - DIN 1.4301/ AISI316 - DIN 1.4401 Production : S360 - Shackle - Cast Pin - Forged Surface treatment : "E.P. " (Electro polished) Field of D-Shackles are designed for application ...

See the other products
Holt
straight shackle for sailboats / with captive pin / forged / stainless steel
straight shackle for sailboats
S360LK / SF360LKF

... Forging material : AISI304 - DIN 1.4301/ AISI316 - DIN 1.4401 Production : S360 - Shackle - Cast Pin - Forged Surface treatment : "E.P. " (Electro polished) Field of D-Shackles are designed for application ...

See the other products
Holt
straight shackle for sailboats / forged / stainless steel
straight shackle for sailboats
RS008050

See the other products
Ronstan
straight shackle for sailboats / flat / stainless steel
straight shackle for sailboats
RF618

Materials Grade 316 stainless steel bodies and pins

See the other products
Ronstan
straight shackle for ships / anchor chain / forged / stainless steel
straight shackle for ships

This is the anchor 'D' endshackle, which is normally fitted onto the crownshackle of the anchor. On the anchor 'd' endshackle a swivelforerunner is fitted and then a kenterjoiningshackle - the kenterjoiningshackle makes sure it all fits together.

How to choose this product

straight-shackle

A D-shackle is a metal fitting composed of a U-shaped piece closed by a pin, often threaded. It is used to fasten or join rigging or other on-board elements subject to significant loads.

Applications

These fittings are used for temporary or movable fastenings. They are found primarily aboard sailboats, but can also be of use on powerboats, for example to connect an anchor to its chain.

Technologies

Unlike bow and twist models, D-shackles are U-shaped. This restricts the freedom of movement of the connected elements. When forged, both shackle and pin have round cross-sections, making them particularly strong. Flat shackles are cut from sheet metal. They are lighter, but not as strong.

The shackle pin may be threaded or held in place by a cotter pin. Pins with a cross-hole in the tab at the outer end can be moused, or wired to the shackle for added security.

How to choose

Shackles have a specific breaking load. To choose the appropriate diameter, determine the maximum stress the shackle will bear. Flat shackles, lighter and less costly than forged models, can be used where loads are light or in non-crucial settings.
