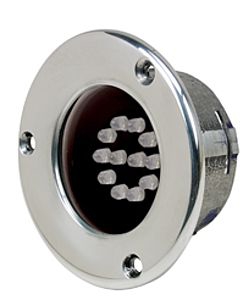

LED SPOT LAMPS
Power saving, high output white LED spot lamps featuring an innovative ring of ambient LED light.
Excessive heat and high power consumption problems associated with halogen down lights can now be overcome with Hella marine high output LED spot lamps.
Hella marine high output LED spot lamps generate over 450 candela. This is more peak and overall output (at a narrower angle) than light from a Hella marine down light running a 12V 10W G4 halogen bulb.
Consumption is less than 2.5W (less than 0.18A @ 12V), providing more than 75% power saving compared to a 10W halogen lamp.
Unique ‘non glare’ reflector technology provides powerful light without discomfort to the eyes. Each lamp also features an outer ring of red, white or blue LED light providing additional ambient illumination. The ambient function consumes less than 0.5W and is switched independently.
Hella marine MultivoltTM electronics provide consistent illumination and circuit protection across a range of inputs from 9-31V DC.
Completely sealed, shock and vibration resistant, Hella marine LED lamps provide outstanding reliability as there are no filaments to break. The surface is cool to the touch so will not cause damage to surrounding materials.
Rims are available in polished or satin 316 stainless steel, gold stainless steel, and black or white high gloss plastic.
Hella marine high output LED spot lamps are the answer for power saving and cool running interior lighting on powerboats and yachts.
|
|
Ultra compact, power saving and attractive LED lamps for a wide variety of interior and exterior lighting applications.
Light is radiated downward at an angle of 30 degrees making these lamps ideal for illuminating onboard areas such as steps, stairs, toe kicks, storage areas, companion ways, deck fittings, signs and switches.
- UV and impact resistant acrylic
- Completely sealed
- Pre-wired with 100mm of marine cable
- Multivolt 12-24V DC
Available in a wide variety of lamp colours and Cap finishes.
|
|
|
|
|
|
|
White light intensity leaps with Hella marine DuraLed® Plus, ultra reliable and ultra efficient LED lighting.
Designed and manufactured in New Zealand, Hella marine white DuraLed® lamps have been upgraded to provide even greater levels of light intensity and energy efficiency on board - a fine example of Hella marine class leading LED technology.
Promoted as ‘DuraLed® Plus’, these new generation LED lamps are an extremely powerful light source of over 600 Candela (peak) with a very wide and uniform light distribution.
DuraLed® Plus LED lamps provide a viable alternative to incandescent and fluorescent lighting in engine rooms, storage lockers, tender garages, anchor wells and many more heavy duty applications where safety and reliability must not be compromised.
Hella marine Multivolt circuitry provides consistent illumination and circuit protection from 9-33V DC, even under severe voltage fluctuations and low battery voltages. Efficient optics and class leading LED technology combine to provide outstanding light intensity with a power consumption of less than 9W per lamp.
All Hella marine DuraLed® (and EuroLED® series) LED lamps now carry international ‘Ignition Protection’ certification according to ISO 8846 and SAE J1171.
|
|
L.E.D. reading lamp emitting a concentrated light equipped with circuit on board for interiors.
Antidazzling built-in reflector
FOR INTERIORS
TOUCH SWITCH
FLEXIBLE
REAL LEATHER FINISH
MULTIVOLTAGE DRIVER ON BOARD
ELECTRICAL DETAILS:
PowerLED Natural White 1W@10-30Vac/dc
|
|
LED reading light with switch
6 LED - High luminosity
Operating voltage: 10-30 Vdc
Power consumption: 1,2 W
Finish: Chromed or satin
IP40
Max dimensions: 72X85 mm
|
|
LED reading light with push button
White Power LED and Red LED
Operating voltage: 10-30 Vdc
Power consumption: 1,5 W
Material: composite material
Black Color
IP40
Mod. SHARK 30, length: 30 cm
Mod. SHARK 50, length: 50 cm
|
|
LED reading light with push button
Light color: daylight
Operating voltage: 10-30 Vdc
Power consumption: 3 W
Material: aluminium
Chrome or Black Color
IP40
Dimensions base: Ø 66X14 mm
Dimensions head: Ø 47X72 mm
|
|
Sunnex HT Spot Light ? 20W
This compact model is a safe, low voltage 20W spot light designed for direct connection. While all spot lights are low voltage, an integrated transformer can be provided by special request on certain models. A remote transformer is also available. The HT Spot Light is ideal as chart reading light, cabin light and for pilot seat controls.
Features include:
12V or 24V with 20W halogen bulb
Direct or rectangular mount base
Rocker switch on base
Available in black or white
|
|
HT - 10W
This compact model is a safe, low voltage 10W spot light designed for direct connection. While all spot lights are low voltage, an integrated transformer can be provided by special request on certain models. A remote transformer is also available.
The HT Spot is ideal for inspection and production applications.
Advantages
12 or 24V with 10W halogen bulb
Direct or rectangular mount base
Rocker switch on base
|
|
Savage Marine also specialise in Interior & Exterior lighting for exclusive Hotels and luxury Architectural developments, whatever your requirements or designs Savage Marine can help, call our sales team today. Bespoke lighting a speciality.
|
|
The New Polymer Range
Made from an exotic high temperature, electroplatable injection moulded Polymer, not only are they Super Light Weight, they also run up to 30 degrees cooler than normal Brass or Stainless Steel fittings. They are non-corrosive, very competitively priced, whilst still being an exceptionally high quality product.
Using the highest grade raw materials, V0 rated Injection moulded Glass Filled Nylon back bodies, toughened Borosilicate glass for our lenses and Ceramic Double contact halogen lamp holders.
|
|
aqua signal Calais - Halogen recessed downlight.
Voltage:
12 V
Housing:
Plastic, available with chrome, brass and white finish
Versions:
Flexible and fixed versions, Halogen G4 20W
|
|
aqua signal Atlanta - maritime light applications in surface and recessed mounting versions for halogen or festoon bulbs. Atlanta Ring stainless steel. Incl. 100 mm / 3.94’ cable
Voltage:
12 V, 24 V
Housing:
Metal
Diffuser:
Plastic, seawater resistant
Protection:
IP 56
|
|
Our security light is powered by a 150w/ 300w/ 500w halogen lamp, mounted horizontally which results in all its light being thrown forward by our high resolution reflectors.
The back body is angled at 10 degrees in order for the light to be directed outboard whilst maintaining an almost flush aspect in the deckhead.
|
|
Sizes: 129mm x 65mm.
Voltage: 24v/ 110-240v
Wattage: 10 x 1w LED
IP Rating: IP66
Lenses:
Sandblasted
Optically Clear Polycarbonate
|
|
|
One of the latest developments at Yachtlite: personalised stairway lighting. Shipyard logo, yacht name or the owner's initials can effectively but discreetly add a personal touch to your yacht. The adhesive film front on an illuminated acrylic base can be individually cut.
|
|
A series of recessed lights ideal as courtesy lights for corridors and stairs. Suitable indoors and outdoors.
They come in white light in two colour temperatures, hot and cold, and with a coloured light in the following colours: blue, red and amber.
Internal electronics with power supply from 10 to 30 Vdc.
|
|
12V MR11 Stainless Steel IP65 Fixed Halogen Wall Light
IP65 Low voltage 304 stainless steel wall light
Spring loaded lampholder to aid lamp replacement
Remote transformer required
|
|
Sizes: 38mm
Voltage: 12v/ 24v / 110-240v
Wattage: 1w
Lamp Type: LED
IP Rating: 45 as standard
Lenses:
Clear
6 Degree Collumator (magnifying lens)
15 Degree Collumator (Magnifying lens)
25 Degree Collumator (magnifying lens)
|
|
LM - 3,6W/12-24V DC
The Sunnex LM is a high-intensity, focused 3,6W LED light which has the same light efficiency as a conventional 20W halogen light source. The extremely long service life, >100,000 hours, make this light both economical and environmentally friendly. The robust, impact-resistant lamp head is made of aluminium and the entire light fitting is highly vibration-resistant.
Advantages
85% lower energy consumption compared with halogen
3,6W Power LED light source with >100,000 hours service life
Environmentally-friendly
Flexible gooseneck arm for easy light positioning
TPU-sleeving protects gooseneck from dust, oil and moisture
|
|
|
|
|
|
|
Sunnex LS is an efficient and powerful 3W Power LED light with the light efficiency identical to a 20W halogen light source.
The energy consumption is around 85% lower than halogen, and service life for this LED light is more than 25 times longer (approx. >50,000 hours).
All in all, this makes LS a very interesting and economical solution as a workplace light. Additionally, the LS light leads the way in being an environment
and climate friendly light source.
The timeless design makes this lighting suitable from office desks to harsh environments within the industry.
The Sunnex LS light comes as standard with 12-24V low voltage or 230V with a built-in transformer. The LS is equipped with a 250, 500 or 700 mm flexible arm, and also available as a spotlight version. In addition to standard models, custom solutions can be offered.
Examples of application areas for Sunnex LS include the marine and off-shore, military and defence industries, tools and engineering machines, assembly and precision work, as well as any workplace where lighting must be both economical and environmentally-friendly.
|
|
BREST - Reading light with halogen or LED
Voltage:
12 V
Housing:
Metall
Electrical:
On / off switch.
Bulb socket accepts MR16 LED or MR16 halogen 12V / 20 W
Authorisation:
CE
|
|
Series of lamps with flexible necks suitable for bedsteads or as technical reading lights.
This is ideal for lighting windows as the profile can easily be attached inside the window frames for creating a dramatic lighting effect.
Base plate with 90° and 45° outlet that allows for installing either on the flat or on a vertical wall.
Power supply from 10 to 30 Vdc with internal or external electronics according to the model.
|
|
LED Clusters are energy efficient and directly replace many incandescent light bulbs aboard boats and RV's. At just 0.068 amps, they draw little current on your 12-volt system, generate no heat, and last for over 100,000 hours. Output equivalent to normal 10-watt light bulb using 12 times as much current. Sold in 3 colors and two bayonet socket styles. Use LED Clusters for reading, engine room lighting, as courtesy lights below or marker lights for stairs, entryways and safety equipment. Battery drain is just 1 amp hour per 15 hours of use!
|
|
Surface mount lights that provide a directional beam of bright reading light. The modern designs add function and elegance to boat interiors.
Adjustable tilt/pivot halogen spotlight with switch and reflector.
|
|
Scottlamp Radiant LED Light
The Radiant light that offers the option of switching to LEDs
The Radiant LED light fitting with Red 'night vision' option provides LED efficiency in a bright format.
Advantages include:
- Dual voltage 12/24Volt
- Power save option on 12Volt
- Night vision red option
- Tough and robust
- Lightweight and slim-line
- No sharp edges
- Easy installation
- Polarity checked
- Approximately 150ma per hour power consumption
Using a jumper on the PCB the Powerusave LED light can be switched to a power save mode in 12Volt if required. Night vision red LED can easily be selected on the unit via a 3 way rocker switch. The radiant is a tough polycarbonate suface mount fitting; ideal for low voltage applications.
Applications including: marine galley and engine rooms, automotive, emergency vehicles, commercial trailers, custom truck bodies, caravans, campers, tents, and advertisement back lighting.
|
|
|
|
