FULL MORTISE TEMPLATE HINGE
3535, 4040, 4545 (3.5"X3.5", 4"X4", 4.5"X4.5")
Material: Brass
Finish: Polished Brass (PB)
Chrome (CR)
Supplied with Screws
Meets ANSI specs.
OR with Ball Bearings -- 4040B, 4545B
Ball bearings contained in 2 rings ensure smooth movement and durability.
Perfectly extruded material ensures even thickness with smooth edges.
Special clear lacquer is used for extra-hard surface and extra-long protection.
Material: Polished Brass (PB)
Satin Chrome (SC)
Antique Brass (AB)
Finials also available.
VISIT OUR WEBSITES FOR MORE INFORMATION:
www.sugatsune.co.jp (Sugatsune Japan)
www.sugatsune.com (Sugatsune America)
www.sugatsune.net (Sugatsune America, Industrial)
**Sugatsune UK site now under construction.
E-mail: export@sugatsune.co.jp
|
|

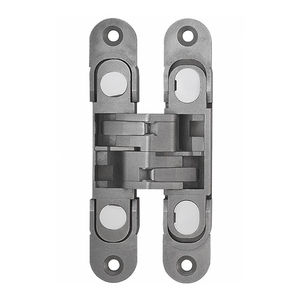

304 B Series STAINLESS STEEL CONCEALED HINGE
(Stainless Steel Mount sold separately)
304B-46/9, 304B-46/14, 304B-46/19 Free swinging
304B-C46/9, 304B-C46/14, 304B-C46/19 Self-Closing
Material: 304 Stainless Steel, Polished Finish
Sugatsune has a wide range of concealed hinges for industrial, furniture, or architectural applications.
Please visit our website or our PDF catalogues here for further information about these and other similar products.
Many Stainless Steel Concealed Hinges Available.
|
|
|

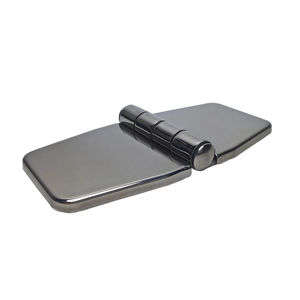

Superior quality stainless steel hinges supplied with either CSK holes or studs, traditional (180 degree opening) or flush (100 degree opening) pin style. Mirror polished and designed to compliment the finest quality yachts and powered craft.
|
|
H20-0320

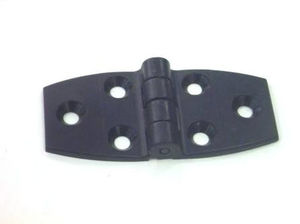

These heavy duty hinges are perfect for folding cabin doors and larger hatches.
|
|
- Chrome Plated Extruded Brass
- Extra Heavy Duty Plastic Bearings
- Removable Pin
For Transom Doors and other applications where strength and smooth operation are required
|
|
100 Series Butt Hinge
Material: Brass
Finish: Polished Brass (PB)
Satin Nickel (SN)
Chrome(CR)
Supplied with screws.
|
|

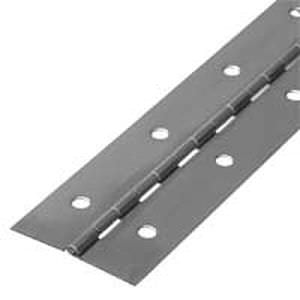

Piano Hinge LSD-30 304 Stainless Steel
Material: 304 Stainless Steel
Finish: Satin
Screws not included
|
|
This rugged latch provides concealed operation by installing within the wall of the compartment and mating with a striker plate installed on an overlapping door. Its adjustable fit accommodates variations in panel thickness and door overhang dimensions. Marine-grade corrosion-resistant construction satisfies the most demanding applications.
Product Features and Benefits
Heavy-duty latch operates with a rounded retractable pin protruding from cabinet wall for actuation. The mating striker plate features a grooved ramp to engage the retractable latch pin, for convenient slam-shut operation.
- Latch body fits enclosure panels from 3 mm (.125") to 19 mm (.75") thick
- Adjustable threaded design mounts quickly and easily in a single round hole
- A ring on internally mounted portion of latch provides safety backup for opening door from inside of enclosure
- 6.5 mm (.26") hole in latch pin provides option for padlocking security
- All 300 series stainless steel construction
|
|
STAINLESS STEEL SPRING HINGE
Material: 304 Stainless Steel
Finish: Satin
Self-closing
Adjustable closing speed
Indoor or outdoor use
No screws supplied
|
|

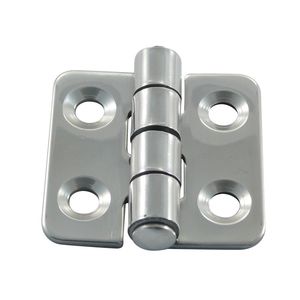

LSK STAINLESS STEEL HINGE
316 Stainless Steel Construction.
Satin Stainless Steel Finish.
Several sizes available from 51mm to 152mm height.
Please visit our website or our PDF catalogues here (catalog #152, page 167) for more information about this and other butt hinges.
sugatsune.co.jp (Sugatsune Japan)
sugatsune.com (Sugatsune America)
sugatsune.net (Sugatsune America- Industrial)
|
|
H21-0133

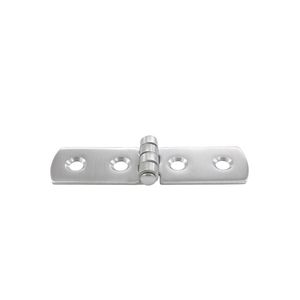

Economy type 304 stainless steel stamped butt hinges are ideal for general purpose applications such as small hatches and access panels. Sold in pairs.
|
|
Visit our Sugatsune's website for our of "XL" line of 304 Stainless Steel Hinges and Locks for glass.
http://www.sugatsune.com
XL-GH-01-600 GLASS DOOR HINGE
Material: 304 Stainless Steel
Finish: Polished
Door sizes:Max. H 450mm (17-3/4") x W 1300mm (51")
Thickness 4~8 mm(5/32" - 5/16")
XL-GH01-250 GLASS DOOR HINGE
Material: 304 Stainless Steel
Finish: Polished
Door sizes:Max. H 400mm (15-3/4") x W 600mm (23-5/8"")
Thickness 4~8 mm(5/32" - 5/16")
XL-GC-04
Glass Door Pivot Hinge
Inset pivot hinge for glass doors
Door size: Max. W500 X H1200 x t8mm
Door weight: Max. 12Kg/pair
Sold per pair
Glass Bracket for XL-GC04
Top board hinge bracket for XL-GC04 pivot hinge
Xl-CC-07
Overlay Glass Door Hinge
Overlay hinge with catch for glass doors
|
|
SMH-30, SMH-40 BRASS TABLE TOP HINGE
Material: Brass
Finish: Polished Brass
Satin Nickel
Chrome
Door Size: Max. W450mm X H700mm
(W17-23/32" X H27-9/16" X t53/64")
Door Weight: Max. 4 kg/pair (8.8 lbs/pair)
VISIT OUR WEBSITES FOR THIS AND OTHER HINGES:
http://www.sugatsune.co.jp (Sugatsune Japan)
http://www.sugatsune.com (Sugatsune America)
http://www.sugatsune.net (Sugatsune America, Industrial)
**Sugatsune UK website now under construction.
E-mail: export@sugatsune.co.jp
|
|
SMH-83 STAINLESS STEEL TABLE TOP HINGE
Material: 304 Stainless Steel
Finish: Satin
Chrome
Door Size: Max. W450 X H700
(W17-23/32" X H27-9/16" X t53/64")
VISIT OUR WEBSITES FOR MORE INFORMATION ON THIS AND OTHER STAINLESS STEEL HINGES:
http://www.sugatsune.co.jp (Sugatsune Japan)
http://www.sugatsune.com (Sugatsune America)
http://www.sugatsune.net (Sugatsune America, Industrial)
**Sugatsune UK website now under construction.
E-mail: export@sugatsune.co.jp
|
|
JH-25 or JH-35 Soft-Close Dampening Hinge
(Catalogue #152, Page 181)
Bracket: PB Plastic
Cap: Polypropylene
Damper: 304 Stainless Steel
Colour: Dark Grey
(Screws not included)
JH-25 Torque per Pair: 31-51 kgf/cm (27-44 lbs/inch)
JH-35 Torque per Pair: 51-71 kgf/cm (44-61 lbs/inch)
Soft-close damper keeps lid from slamming shut
Operating Temperature: 0~40C (32~104F)
Operating angle: 115 degrees / Dead angle: 5 degrees
A-type damper: Damper works counterclockwise
B-type damper: Damper works clockwise
Sold per pair(Each of A/B type)
Visit our websites for more dampening hinges and dampers.
http://www.sugatsune.co.jp
http://www.sugatsune.net
http://www.sugatsune.com
E-mail: export@sugatsune.co.jp
|
|
SFTH - STAINLESS STEEL TORQUE HINGE
Designed for holding lid/door in position.
Stainless Steel construction for corrosive environments.
Operating Temperature: -20C to 60C (-4F to 140F)
Body: 304 Stainless Steel and 301 Stainless Steel
Shaft: 303 Stainless Steel
5 sizes/torque ranges available from 5 to 58 kgf-cm
|
|
|

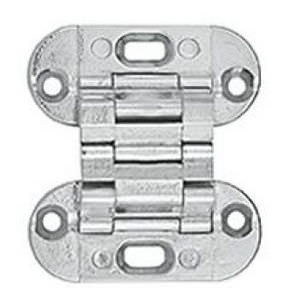

CONCEALED HINGE STAINLESS, HAS 90° - WITH SETBACK
|
|
SPRING LOADED LID STAY
Spring Mechanism assists lifting door and holds in open position.
2 types available for side panel or face front mount
Material: Body & Bracket-304 Stainless Steel Arm-Polyacetal
Application: Toy box, Outdoor stora
|
|
