12 volt submersible bilge pumps are constructed of shock resistant A.B.S. plastic, and powered by the world's best compact motor. The snap-on strainer base makes installation a simple procedure. These reliable pumps are available in four sizes from 500gph to 1000gph.
|
|

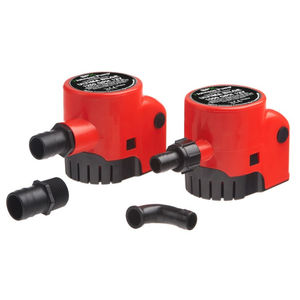

Ultima Bilge Pump
Sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage12 V DC.
For UltimaBilge™ 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps are delivered including both a straight and a 90° smooth elbow Dura-Port and a removable check valve.
|
|
Ultima Combo
Pump with automatic operation equipped with the Ultima switch. Voltage12 V DC as well as 24 V DC for L650 UC and L750 UC.
For L450 UC - L650 UC, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps will be delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve.
|
|
Heavy Duty Bilge Pump – L1600 - L4000 Series
Designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life.
The L2200 motor is sealed off by a mechanical seal design that eliminates shaft wear and allows for service and replacement, while the L1600 model has lipseal.
The impeller is carefully designed and tested to maximize head and flow.
The L4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1.½” or 2” ports makes for a simple installation. Removable check valve included.
|
|
Cartridge Bilge Pumps L450 - L750 Series
L650 and L750 incorporate some of the most advanced features in the industry, features developed from service in a wide variety of uses including racing, cruising, sport fishing, and demanding commercial duties.
For L450, L550, and L650, we have improved the design with easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps are delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve.
|
|
Rule's 700 and 750 G.P.H. Pumps offer increased capacity in keeping with it's 3/4" (19mm) discharge outlet. 12 Volts DC unless noted.
|
|
High pumping capacity and reliability at a lower cost. The Rule 1500 offers more pumping capacity and more exclusive design features than any comparable competitive pump. 1-1/8" (28.6mm) discharge outlet. 12 Volts DC unless noted.
|
|
Attwood’s pumps play no "rating games" like competitive pumps. Attwood electric bilge pumps deliver value and performance that’s built to last.
|
|
Self-priming diaphragm pump with 12v or 24v DC electric motor. Flow rates up to 18.9 litres/min (5 US gallons/min)
Features:
Self-primes up to 10ft (3m) vertical lift
Runs dry without damage to the pump
Quick-connect plug-in ports for easy installation
Includes strainer, 3/4" hose barb and 3/4" garden hose ports
|
|
A very compact, powerful pump which is ideal for the hard life of working boats. This pump can lift up to 130 litres per minute (to free outlet) and is available for 12 and 24 V.
The motor has double roller bearings, and a mechanical seal virtually eliminates shaft wear. This, together with water cooling, helps to ensure many years of trouble free life with very low power consumption.
|
|
|
Engineered to commercial standards. The Rule 2000 is the best selling high capacity submersible bilge pump in the world. 1-1/8" (28.6mm) discharge outlet. 12 Volts DC unless noted.
|
|
|
High pumping capacity and reliability at a lower cost. The Rule 1500 offers more pumping capacity and more exclusive design features than any comparable competitive pump. 1-1/8" (28.6mm) discharge outlet. 12 Volts DC unless noted.
|
|
|
The Rule 500 offers many design features while keeping size and cost to a minimum. Especially popular on smaller craft, Rule 500 pumps are unmatched in pumping power and longevity.
|
|
|
Quality bilge pumps you can trust. SHURflo’s bilge pumps are built for the harsh marine environment to withstand the toughest conditions. Standard with 3’ Tinned Wire Assembly for above waterline installations and water cooled motors for extended life. .
|
|
|
If there is no electrical power on board you can always rely on the little QL manual bilge pump. It pumps 0.9 litre per stroke which equals 90 litres per minute at 100 strokes per minute. It can be installed behind a bulkhead or below deck to take up the least possible room. The pump handle is removable, only being fitted to work the pump, which saves more space.The QL manual bilge pump comes in two versions to suit different installations: For installation through the deck, i.e. vertical installation, or for installation behind a bulkhead - i.e. horizontal.
|
|
Technical specifications:
Electric motor: three-phase induction motor MEC T63C4 or single-phase induction motor MEC M63C2
Power supply: 230 V / 400 V – 50 Hz depending upon the model
Power output: 0.22 kW / 0.25 kW depending upon the model
Absorbed current: 1.6 A / 1.4 A depending upon the model
Protection rating: IP 55
Condenser: 10 µF
Speed of motor rotation: 1,380 rpm / 2,800 rpm depending upon the model
Maximum pressure: 20 bar
Capacity: ranging from 5 to 22 litres / minute
Data referring to the following test fluid: oil with viscosity n =13 cSt and temperature ranging between 15°C and 20°C
|
|
The manual option
- Manufactured from corrosion resistant, marine grade materials.
- Designed to give long and trouble free service.
- Quick release inspection cover.
|
|
|
|
|
|
|
Bilge Alert
High water alarm featuring digital technology using the patented Mirus field effect cell. Totally sealed fluid detector are never in contact with water, will not corrode and are not affected by oil or debris. Bilge Alert detects water and sends a signal (8 seconds delay) to the alarm and switch conveniently mounted on a panel. Three way rocker switch allows alarm to be tested, turned off and armed.
Automatic Switch AS888
For full automatic bilge pumping operation, connect the automatic switch to your bilge pump. The AS888 automatic switch has a time-proven micro switch without mercury. When water exceeds the acceptable level, the pump is turned on by a rolling steel ball, which changes the pressure on the micro switch. The AS888 attaches to any SPX Johnson Pump Marine bilge pump through the clip on "T-slot" and can be used with 6, 12, 24 or 32 V systems. Use AS888 for a better and safer life afloat!
Ultima Switch
Digital technology uses the patented Mirus field effect detector cells producing micro-electrical fields that detect disruptions caused by water and fluids. Detector cells are totally sealed and are never in contact with the water, will not corrode and are not affected by oil or foreign debris. No moving parts, totally sealed solid state electronics and field detectors, no mercury and no exposed sensors eliminate corrosion possibilities and makes the Ultima switch environmentally sensitive. Ultima activates at a 50 mm (2") fluid level and deactivates at a 20 mm (¾") fluid level. A 3 second delay prevents false starts . Ultima switch is rated to handle pumps up to 20 amps at 12 or 24 volts.
|
|
|
The BSW 1000 by Smartswitch has been designed to counter the design failings of bilge switches of yesterday. Short life span and unreliability caused by switches continuously burning-out was almost ‘par for the course’. NOT ANYMORE. Easy to install and easy to operate, the BSW 1000 offers today’s mariner a reliable alternative to the old technology still on the market today.
|
|
|
Year after year, the Rule-A-Matic has been the switch of choice for boaters the world over. Our latest design now includes a removable base for easy cleaning and servicing, a mercury free snap switch tested to over one million cycles and marine grade "blocked" wire. Designed for pumps drawing up to 14 Amps. Model 35A and 35FA now includes a 2 year warranty.
|
|
Now backed by a 5 year warranty, the non-mercury SuperSwitch is designed for the toughest applications. Design includes marine grade 14 gauge “blocked wire”, larger float for increased buoyancy, removable base for easy servicing and a snap switch design capable of handling pumps drawing up to 20 Amps.
|
|
|
Year after year, the Rule-A-Matic has been the switch of choice for boaters the world over. Our latest design now includes a removable base for easy cleaning and servicing, a mercury free snap switch tested to over one million cycles and marine grade "blocked" wire. Designed for pumps drawing up to 14 Amps. Model 35A and 35FA now includes a 2 year warranty.
|
|
|
Controls any pump equipped with an automatic float switch. This unit features a black plastic panel. It has a built-in fuse holder and an internally lighted rocker switch with 3 positions (automatic, off, or manual) with the Rule "fail-safe" spring return to "off" from the "manual" position.
|
|
