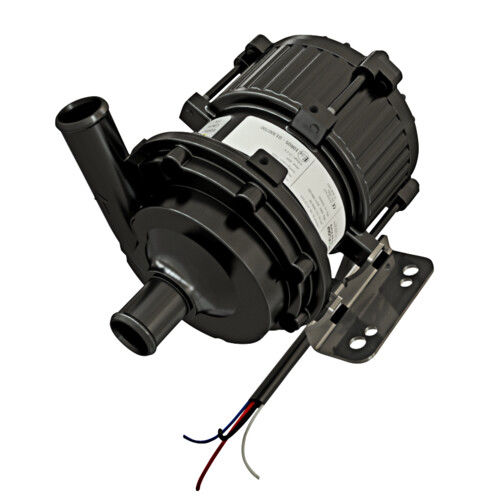

Boat pump CM95HPbilgewatermagnetic-drive
Add to favorites
Compare this product
Characteristics
- Application domain
- for boat
- Applications
- bilge
- Fluid
- water
- Operation
- magnetic-drive, with brushless DC motor
- Material
- aluminum
- Flow rate
37 l/min, 43 l/min, 75 l/min, 78 l/min
(9.77 us gal/min, 11.36 us gal/min, 19.81 us gal/min, 20.61 us gal/min)- Hose diameter
25 mm, 38 mm
(1 in, 1 in)- Weight
3.2 kg
(7.1 lb)- Length
208 mm, 214 mm
(8 in, 8 in)- Width
135 mm, 162 mm
(5 in, 6 in)
Description
Centrifugal pump (must be primed)
Magnetic drive (no shaft seal/mechanical seal)
Brushless motor
Long service life
Wide temp. range
Built-in thermal overload protection
EMC approved according toEN55014-1:2006 + A1: 2009 + A2: 2011. EN55014-2:1997 + A1:2001. EN61000-6-3:2007 + A1:2011; Part 6-3. UN Regulation 10 (2004/104/EC: 2004). EN 61000-6-2:2005
The CM-series pumps are normal-priming centrifugal pumps and should be mounted in a manner that ensures that they are always flooded or else be primed before being switched on.
The pumps should not be used for soiled water containing hard particles.
