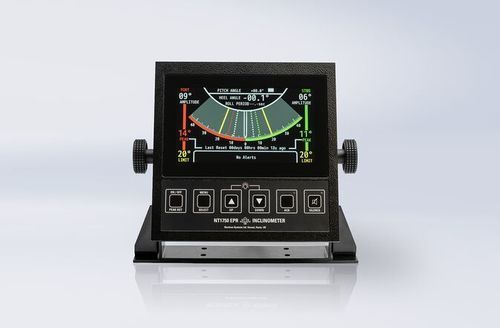

Analog clinometer NT1750 EPR

for boatselectronic

Product overview
Fully MED Type Approved in accordance with ISO 19697:2016 by TUV SÜD. The NT1750 EPR electronic pitch and roll inclinometer is compliant with IMO recommendations and suitable for installation on all SOLAS vessels. The unit includes an operator-selectable second display intended for Escort Tug towing operations in accordance with Bureau Veritas Classification Rules NR467 (January 2025). When preset safe levels are exceeded, a visual and/or audible alarm is triggered. Heel angle zones are defined as Green (safe), Amber (action required) and Red (immediate action required); all zones are adjustable by the Tug Master.

Additional features

• Operator-selectable second display screen for Escort Tug towing operations
• Visual and/or audible alarm when preset safe levels are exceeded
• Heel angle zones (Green / Amber / Red) adjustable by the Tug Master
• Designed for SOLAS vessels and compliant with IMO recommendations
• MED Type Approved (ISO 19697:2016) by TUV SÜD

Technical specifications

• Measuring range: ±180° for heel, ±90° for pitch angle
• Digital display resolution: 0.01° for angle, 0.1 s for time measurements
• Analog display range for heel: ±45°
• Roll period display range: 4...40 s
• Angular accuracy: ±5% or ±1°
• Time accuracy: ±5% or ±1 s
