air treatment system / shipyard / activated carbon filter
Sistema di Trattamento di aria
activated carbon filter

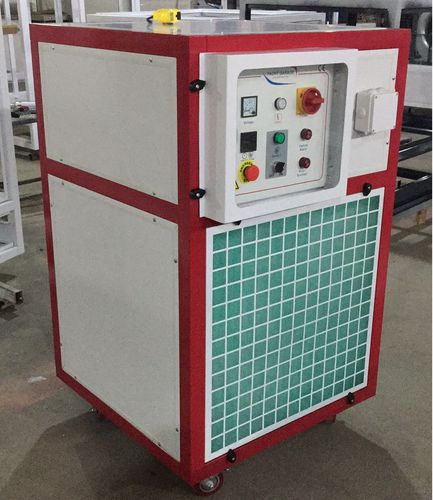

The Mobile Air Treatment Plant AT000MICRO is the smallest yachtgarage’s air handling and purification system for shipyards. The flow power of the system is 1.000 m³/h. The unit is equipped with an integrated control panel with error indicator, emergency button and hour meter.
The air filtration is achieved via one FIBERGLASS DUST FILTER made in fiberglass non – woven fabric able to capture dust particles with very small dimension ( up to 2 µm) and able to collect from 1.800 to 3.000 g/m² and via one FABRIC ACTIVATED CARBON FILTER : made in coconut shell activated carbon attached to a non – woven fabric able to adsorb between 15% and 35% of solvent depending on the thickness of the fabric. The size of the product are 1600x700x1700mm (LxWxH). The system is mobile as it is equipped with eigth wheels made in heavy duty material with orbital movement. Power is 220V.50 Hz ( option 110V available).
