Boat air conditioner SX Series

marinestand-alonereversible

Overview

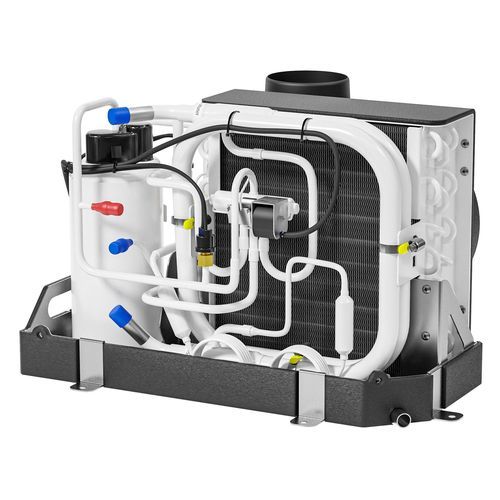

Webasto BlueCool SX-Series marine air conditioners are modular, cabin-by-cabin standalone units designed for boats and yachts with up to five cabins. Each cabin can be fitted with its own evaporator/cooling unit. Compressor, condenser, evaporator and blower are pre-assembled on a stainless-steel condensate tray and the compressor is hermetically sealed. Models are available for 230 V and 115 V electrical systems and provide cooling capacity up to 27,000 BTU/h. Systems include reversible heat-pump operation and intuitive MyTouch display with real-time evaporator temperature readout.

Key features

• Modular, cabin-by-cabin marine air-conditioning solution for boats and yachts (up to five cabins)
• Pre-assembled package: compressor, condenser, evaporator and blower mounted on stainless-steel condensate tray for simplified installation
• Hermetically sealed compressor and pre-assembled refrigerant circuit
• Versions for 230 V and 115 V electrical systems; 50/60 Hz
• Cooling capacity up to 27,000 BTU/h (approx. 1.8 – 7.9 kW depending on model)
• Reversible heat-pump function for heating
• Low power consumption and quiet operation; optional vibration absorbers and soft-start accessories
• Designed for continuous, year-round operation including tropical conditions
• Control via MyTouch display with real-time evaporator temperature monitoring

Model overview

• SX6
• SX8
• SX10
• SX13
• SX16
• SX20 (230 V only)
• SX27 (230 V only)

Dimensions / Weights (L x W x H in mm / Weight in kg)
BlueCool SX-Series 230 V:
SX6: 405 x 320 x 315 / 20.5
SX8: 405 x 320 x 315 / 23.5
SX10: 480 x 335 x 315 / 24
SX13: 510 x 350 x 370 / 28.2
SX16: 550 x 350 x 370 / 32
SX20: 590 x 340 x 370 / 36
SX27: 575 x 515 x 410 / 48

BlueCool SX-Series 115 V:
SX6: 405 x 320 x 315 / 20.5
SX8: 405 x 320 x 315 / 23.5
SX10: 480 x 335 x 315 / 24
SX13: 510 x 350 x 370 / 28.2
SX16: 550 x 350 x 370 / 32

Technical specifications

• Cooling capacity: 6,000 - 27,000 BTU/h (approx. 1.8 - 7.9 kW)
• Integrated heating via reverse cycle (heat-pump)
• Rated voltage: 115 V or 230 V
• Frequency: 50/60 Hz
• Hermetically sealed compressor and pre-assembled refrigerant circuit
• Stainless-steel condensate tray for integrated condensate management
• Low-noise operation; optional vibration absorbers and soft-start accessories
• Designed for continuous and tropical operation
• Control: MyTouch display with real-time evaporator temperature readout
