Sport-fishing motor yacht 90 SB

convertiblewith enclosed flybridgecenter console

Overview

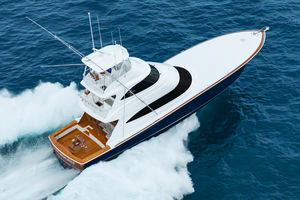

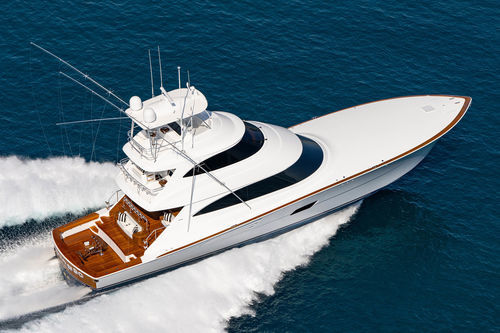

The Viking 90 SB is a long-range sportfishing yacht configured for tournament-level performance with Sky Bridge ergonomics and mega-yacht accommodations. Offered in Sky Bridge (SB), Enclosed Bridge (EB) and Open Bridge / Convertible (C) configurations, the design emphasizes advanced propulsion, lightweight composite construction and serviceable systems.

Performance & Design
The hull employs a lifting-strake profile, refined driveline and prop pockets developed with Computational Fluid Dynamics to optimize pressure distribution, trim and trim-tab effectiveness. Standard tankage and systems prioritize accessibility and serviceability. Light Resin Transfer Molding and increased carbon-fiber use reduce weight and enhance performance.

Cockpit & Mezzanine
The 224 sq ft cockpit includes a 203-gallon transom fishbox/live well and two 103-gallon insulated in-deck fishboxes (refrigeration optional). A single centerline hatch (optional electric actuation) provides Seakeeper 35 access. The reinforced cockpit sole accepts fighting chair, rocket launcher or table installations. Three aft-facing seating areas between the lower and upper mezzanines offer visibility and comfort. The lower observation mezzanine centerline lounge has optional seat-back air-conditioning and integrated tackle cabinets. The upper mezzanine provides an L-shaped aft-facing lounge with standard seat-back air-conditioning, a teak table and a customizable cooking/refreshment hub to starboard.

Salon & Galley
The salon contains a large U-shaped lounge to port, walnut hi-lo cocktail table, starboard home theater with surround sound and pop-up 65-inch HD TV, plus a wet bar with sink and icemaker. The galley is a wrap-around layout with engineered stone countertops, two Sub-Zero refrigerators, freezer, dishwasher, electric range with four-burner cooktop, garbage disposal and trash compactor. A raised dinette with U-shaped seating provides elevated viewing with storage below.

Accommodations
Typical owner arrangement delivers six staterooms and seven heads, including a full-beam master with his-and-hers heads, king-size bed, maple-lined walk-in closet, 65-inch HDTV credenza, vanity/desk and port lounge seat. Five guest staterooms each have private heads, plus crew quarters with direct engineroom access and a pantry with an additional crew berth. An enclosed laundry center with full-size stackable washer and dryer is provided.

Bridge Options (EB / SB / Open Bridge)
The Enclosed Bridge (EB) includes a climate-controlled second salon and a raised electronics pod sized for five multi-function displays (MFDs). The Sky Bridge (SB) pairs open-air visibility with protected helm ergonomics on a raised helm platform and extensive lounge areas. The Open Bridge (Convertible) emphasizes sportfishing ergonomics with a center console, forward lounge, refrigerated drink box and flybridge storage/freezer provisions.

Engineroom & Systems
The engineroom is finished in bright Snow White Awlgrip for visibility, offers more than 7 ft of headroom and wide access to 16-cylinder powerplants. Key systems include Furuno omnidirectional sonar tube, Optimus steering, Octoplex digital switching, Spot Zero water maker/purifier, ElectroSea CLEARLINE centralized seawater system, composite seacocks and standard 40 kW generators aft of the engines.

Power Options

• Standard: Caterpillar C32A diesels — 1925 MHP (base)
• Option: Caterpillar C32B — 2433 MHP
• Option: Twin MTU 16V 2000 M96L — 2635 MHP (optional power package for hull No. 1)

Notable Features

• Advanced propulsion, prop pockets and refined driveline for high-speed capability
• Large fuel capacity enabling long-range cruising
• Streamlined enclosed-bridge and open-bridge build process to reduce weight and profile
• Optional Seakeeper 35 integration and reinforced cockpit sole for tournament gear
• Extensive storage including insulated boxes, freezer/refrigeration and dedicated tackle cabinetry

Specifications / Technical data

• Length Overall (LOA): 90 ft 0 in (27.41 m)
• Beam: 23 ft 2 in (7.05 m)
• Draft: 5 ft 11 in (1.80 m)
• Gross Weight: 192,000 lbs (87,090 kg)
• Fuel Capacity: 3,801 gals (14,388 L) — standard fuel load
• Water Capacity: 480 gals (1,817 L)
• Cockpit area: 224 sq ft; 203-gallon transom fishbox/live well; two 103-gallon insulated in-deck fishboxes (refrigeration optional)
• Staterooms/Heads: typically six staterooms and seven heads
• Standard engines: Caterpillar C32A, 1925 MHP; optional C32B 2433 MHP; optional MTU V16 M96L 2635 MHP
• Standard generators: 40 kW (locations aft of the engines)
