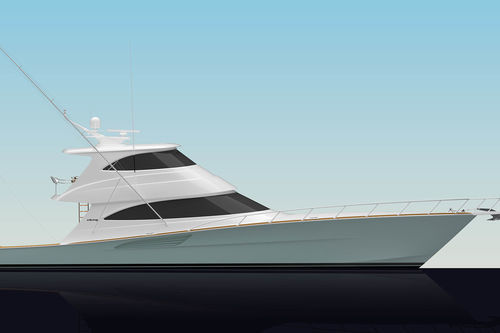

Cruising motor yacht 74 EB

ocean cruisingconvertiblewith enclosed flybridge

Overview
The 74 is offered with two bridge configurations—Enclosed Bridge (EB) or Sky Bridge (SB)—designed to provide operational flexibility, enhanced control and extended-use comfort.

Enclosed Bridge
The Enclosed Bridge configuration provides a climate-controlled command center with a forward helm featuring a one-piece windshield and an additional salon forward. An interior staircase links the enclosed bridge to the lower salon, while exterior access is via the aft deck, which includes a docking station and lounge area. This layout is suited for extended cruising and operations in varied weather conditions.

Sky Bridge
The Sky Bridge offers elevated visibility and an open-air helm while retaining practical comforts. Located above the EB, the Sky Bridge includes a fully equipped helm with side console, dedicated seating, storage and 360-degree sightlines—preferred when unobstructed visibility is required.

Additional Notes
Both bridge options share the same cockpit, accommodations, hull form and optional equipment packages as the 74 Convertible, enabling selection without compromise to core vessel systems.

Specifications
Length Overall (LOA): 74 ft 0 in (22.56 m)
Beam: 19 ft 9 in (6.02 m)
Draft: 5 ft 7 in (1.70 m)
Gross Weight: 135,000 lbs (61,235 kg)
Fuel Capacity: 2,517 gals (9,521 l)
Fuel Capacity (Optional): 2,630 gals (9,956 l)
Water Capacity: 385 gals (1,457 l)

Technical specifications

• Model: 74 EB
• Length Overall (LOA): 74 ft 0 in (22.56 m)
• Beam: 19 ft 9 in (6.02 m)
• Draft: 5 ft 7 in (1.70 m)
• Gross Weight: 135,000 lbs (61,235 kg)
• Fuel Capacity (standard): 2,517 gals (9,521 l)
• Fuel Capacity (optional): 2,630 gals (9,956 l)
• Water Capacity: 385 gals (1,457 l)
• Available configurations: Enclosed Bridge (EB) or Sky Bridge (SB)
