Electric engine E-LINE
propulsioninboardboating

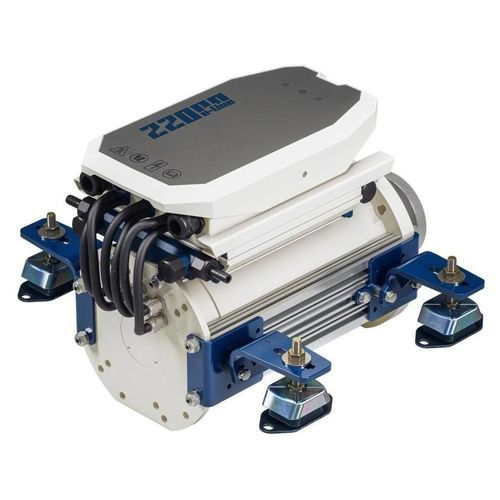

Electric engine - E-LINE - VETUS - propulsion / inboard / boating

Electric engine - E-LINE - VETUS - propulsion / inboard / boating - image - 2

Electric engine - E-LINE - VETUS - propulsion / inboard / boating - image - 3

Add to favorites

Compare this product

Go to the VETUS website for more information

Characteristics

Type

inboard, propulsion

Power source

electric

Market

boating, for boat

Technology

permanent magnet, synchronous

Cooling system

water-cooled

Power

Min.: 20 kW
(27.2 hp)

Max.: 22 kW
(29.9 hp)

Engine speed

Min.: 1,200 rpm
(7,540 rad.min-1)

Max.: 1,600 rpm
(10,053 rad.min-1)

Length

545 mm
(21 in)

Width

540 mm
(21 in)

Height

371 mm
(15 in)

Weight

93 kg
(205 lb)

Description

Overview
The E-LINE 22 kW inboard electric propulsion motor is a liquid-cooled, low-maintenance solution for shaft-driven vessels. Its optimised design delivers high efficiency and the highest output in its electric range, extending range per charge and reducing energy consumption. Suitable for new builds and refits, it provides reliable performance for boats up to 15 m or 20 tonnes.

Set consists of

E-LINE 22 kW motor
V-CAN monitoring panel
V-CAN key switch panel
Converter - 48VDC-12VDC, 360W
V-CAN cable 1 m, halogen free
V-CAN-bus 3-point hub
V-CAN termination resistor
V-CAN cable 5 m, halogen free

Choose your cooling
The E-LINE 22 kW can be cooled with surface fresh water or via a keel cooler. Use surface water cooling in clean fresh water; for saltwater or contaminated water, two keel coolers are recommended.

Keel cooling system: EDKCSET
Fresh water cooling system: EDFWSET

Advanced Monitoring Sets
Optional digital monitoring sets and displays are available to upgrade system monitoring for precise maneuvering and positioning.

Technical specifications

SKU: ELINE220S
Maximum output power: 22 kW (approx. 30 hp)
Motor output power: 20 kW (@1500 rpm)
Max. speed (RPM): 1600
Max. torque (Nm): 130
Motor type: Permanent magnet motor (PMAC)
Voltage (V): 48 VDC (40 - 60 VDC)
Maximum input current draw: 580 A
Indicative energy consumption: 4 - 8 kWh @ 6 km/h (3.5 kt)
Indicative comparable combustion engine (hp): 30
Recommended boat length: Up to 15 m (50 feet) or 20 ton
CAN bus: V-CAN
Cooling systems: Liquid cooled
Liquid cooling system connections: 12.7 mm (1/2”) (intake and outlet)
Weight: 93 kg
Length: 545 mm
Height: 371 mm
Width: 540 mm
Maximum shaft rpm in ECO mode: 1200 rpm
Maximum shaft rpm in POWER mode: 1600 rpm
Transmission ratio: 1:1 direct electric drive
Coupling (optional): Combiflex 1225 / 1230 | Bullflex 0125 / 011
IP-rating motor: IP65 with gore-tex membrane and IPx3 cover
Control and warning: Propulsion active, POWER mode, temperature, battery level, high current draw, low voltage, limiting alarm
Electric circuit protection: Fuse 500 Amps (SLOW BLOW)
Equipped with: Active Electronic Braking, Battery Protection, and Boosted Charge 24V > 48 VDC 120 A functions
