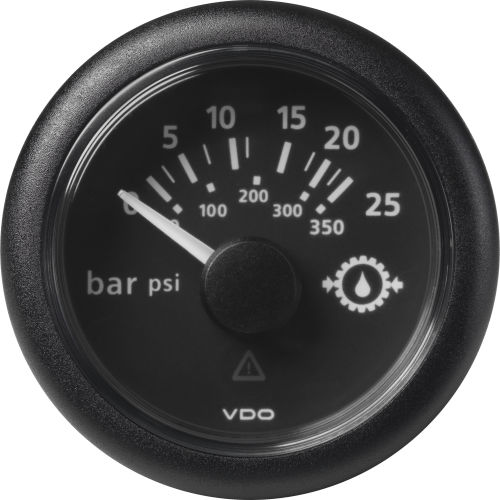

Boat indicator ViewLine

oil pressureanalogtransmission

Available in black and white with a selection of bezels in different colors (black, white, chrome) and shapes. Measurement ranges: 0-25Bar, 0-30Bar, 0-400PSI ViewLine 52 mm Pressure Gauges are equipped with a red warning LD as a standard. The warning point depends on the chosen pressure sensor with warning contact or can be controlled by installing a make-point switch. Anti-fog plastic double lens, maximum precision and stylish design. The 0-5 Volt Gauge compatible with Electronic Pressure Sensors displays the engine or gearbox oil pressure. Specifications: 8 pole Tyco / Hirschmann MQS plug +/- 3.6° angle degree accuracy over the entire display range Operating voltage 8 – 32 V Integrated warning alarm Input signal: standard Ω values Optional make point switch can be connected Reverse polarity protection Anti-fog double lens Front side protection rating IP67 52 mm installation diameter 50 mm installation depth
