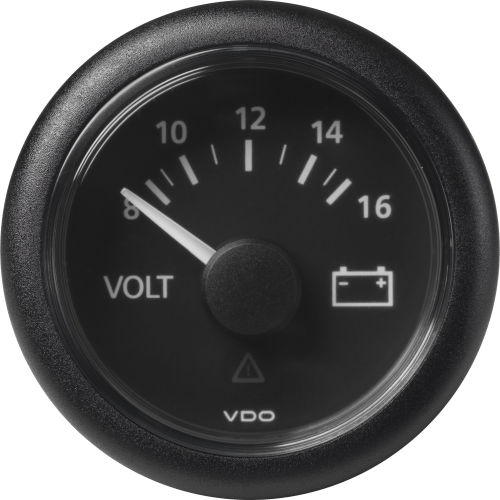

Voltmeter ViewLine

Available in black and white with a selection of bezels in different colors (black, white, chrome) and shapes. Measurement ranges: 8-16V, 18-32V The ViewLine 52 mm Voltmeter displays the status of generator and battery and their loads on a voltage scale. Values exceeding the normal charging voltages can therefore be monitored exactly. Even potential deep discharges can be detected. Specifications: 8 pole Tyco / Hirschmann MQS plug +/- 3.6° angle degree accuracy over the entire display range Operating voltage 8 – 32V Integrated warning alarm Input signal: standard Ω values Optional make point switch can be connected Reverse polarity protection Anti-fog double lens Front side protection rating IP67 52 mm installation diameter 50 mm installation depth
