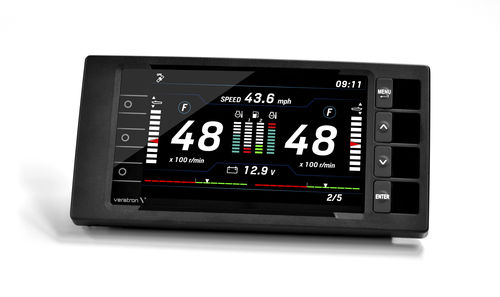

Boat display OL 7" TFT

multi-functionTFT

Resolution: 800 x 480 (WVGA)
Nominal Voltage: 12 / 24 V
Color: Black

OceanLink Master 7’’ is a multifunction display that lets you monitor engines and related sensor parameters. Up to four engines can be connected to the display. The integrated NMEA 2000 gateway lets you acquire engine data also via analog signals or SAE J1939, to then convert and distribute them on NMEA 2000 network. The display manages up to six resistive sensors, three voltage sensors, two capacitive sensors and one digital alarm. All data are also distributed on two EasyLink channels to a maximum of 16 52mm OceanLink gauges per channel.
NMEA 2000 connectivity lets you view navigation data from other devices on the network, such as wind, compass, GPS, speed and depth data.
OceanLink Display 7’’ TFT is a versatile device. It lets you control all connected engines in a single monitoring point and at the same time. The motor whose data is displayed is selected during data page configuration.
Data pages display data received from the various sources. There can be up to 10 data pages.

Specifications

Touch screen function
Optical bonded mineral glass lens
Front & rear side protection rating IPX76
1x NMEA 2000® connector
2x J1939
6x Analog input
2x Frequency input
2x 4-20 mA
3x Digital input or 0-5 V
2x Alarm output
2x Video input
2x EasyLink data output
2x Programmable alarm output 500 mA
Operating temperature range -20 °C / +70 °C
