monohull / fast cruising / offshore racing / open transom
ST-48 "Anarquista"

{{requestButtons}}

Characteristics

  • Number of hulls:

    monohull

  • Intended use:

    fast cruising, offshore racing

  • Deck layout:

    open transom

  • Below-deck configuration:

    with 2 or 3 cabins

  • Appendages:

    lifting keel, twin rudders

  • Other characteristics:

    twin steering wheels, semi-custom, sail-drive, with ballast

  • Length:

    14.7 m (48'01")

Description

48ft-2016

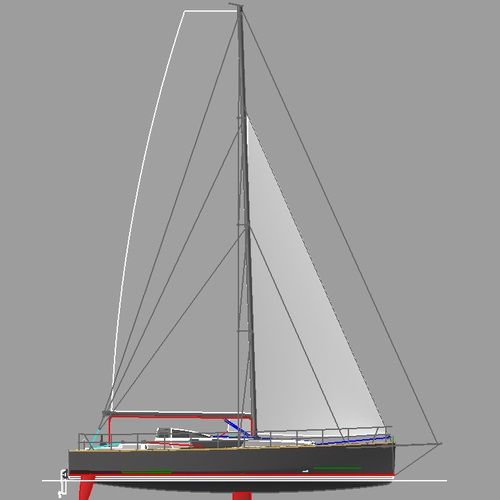

ST-48 "Anarquista"
This yacht is a continuation and development of ideas of a 40-foot project "Anarquista Chika". More comfortable yacht, for the crew of 4-6 peaple, which will save all the high-speed features of the project 40. Ocean race sailing and fast cruising at the maximum possible speed in adverse weather conditions. Therefore, this yacht is also designed primarily for the maximum speed under sail and sailing competitions.

To achieve such speeds a yacht of this size should have a displacement of less than 11000 kg. Fast ocean race sailing and fast cruising at the maximum possible speed in adverse weather conditions. 48 feet is in our opinion the perfect size for a team of 6 people, or joint ownership of two families.
The "Racer versio" of this project has all the extra options from the world of sailing ocean race yachts:
· ballast tanks to improve stability 2x1200 (optional)
· two entrances to the wheelhouse
· efficient modern wiring running rigging
· backstay and lowers the mast to support the use of modern sails
· lifting keel 2500 kg (optional)
· carbon mast

Construction:
· sandwich hull based of epox resin followed thermostated

Specification:
· LOA = 14.67 m
· B max = 4.5 m
· Lwl = 14.18 m
· Bwl = 3.46 m
· Hmid = 1.97 m
· Thull = 0.55 m
· Tkeel = 2.7-3.5 m
· D = 10700 kg (cruis version, full displ., with one full ballast tank)
· Ballast Keel (fixed) = 3900 kg
· Fresh water = 900 l
· Fuel = 2x250 l
· Crew = 6-7 per.
· Engine = 48-56 hp, Sail Drive
· Up-Wind Sails = 140 m2, Jib = 53.0m2, Main = 86 m2
· Assymmetrical Gennaker up to 240m2
Interior layout (cruiser):
· two main rear cabin
· different shower
· large drying chamber for wet clothes
