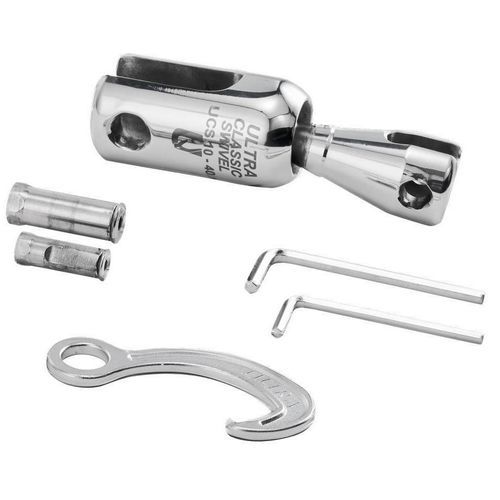

Standard swivel ULTRA Classic

anchor chainfor boatfor sailboats

Product overview
Designed and manufactured in Turkey, the ULTRA Classic Swivel connects anchor to chain without an additional shackle. Machined from solid 316Ti stainless steel and hand polished, it provides a reliable bow connection with simple operation and no need for a safety strap or locking pin.

Key features

• Designed specifically for articulating bow‑pocket anchors connected to the chain.
• Breaking load exceeds that of the chain, avoiding a weak link even with high‑holding anchors.
• Hex‑head pin seats tightly in hexagonal sockets to prevent loosening over time.
• Generous joint clearance reduces dirt build‑up and prevents binding.
• Machined from solid (not cast) material to eliminate brittleness.
• Concealed low‑friction TEFLON ring maintains operation with minimal maintenance.
• Supplied with a 5‑year warranty.

Product description
The ULTRA Classic rotates continuously through 360° and articulates up to 30° to either side. The hex‑head pin and grub‑screw arrangement removes the need for extra safety measures. Breaking load is stamped on the back of each unit. Designed and manufactured in Turkey, the ULTRA Classic was the only Turkish design nominated at DAME 2011.

Technical specifications

• Material: Machined from solid 316Ti stainless steel, hand polished.
• Rotation: Continuous 360° rotation.
• Articulation: Up to 30° to each side.
• Load: Breaking load exceeds the chain; value marked on the back of each unit.
• Pin system: Hex‑head pin with grub screw; heads seat into hexagonal seats to prevent loosening.
• Sealing / low friction: Concealed low‑friction TEFLON ring.
• Design: Machined (not cast) to avoid brittleness; generous joint clearance to prevent binding from dirt.
• Installation: Connects anchor to chain without an additional shackle; no safety strap or locking pin required.
• Warranty: 5‑year warranty.
• Origin: Designed and manufactured in Turkey; DAME 2011 nomination.
