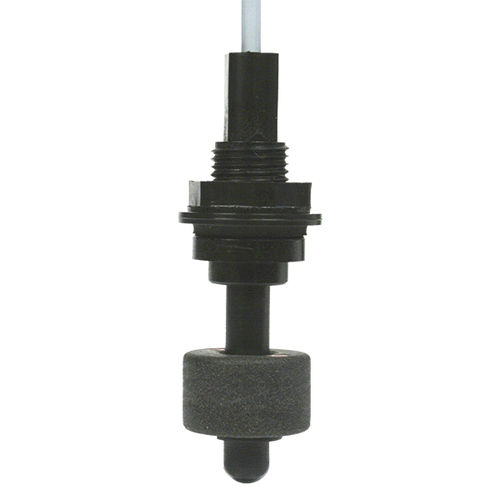

Float level switch SR 51
for boatsfor tankpump

float level switch
float level switch
Add to favorites
Compare this product


Characteristics

Technology
float
Application domain
for boats
Applications
for tank, pump

Description

Cost-effective float switch made from POM/Buna with one switch point and a fixed length of 45 mm. Changeover of the NO/NC function by turning over the float. Opener 1 Closer - 100 VAC/DC; 10VA/W; 0.5 A Switch function - normally closed / normally open / by turning the float normally open in normally closed Cable - 1 m PVC 2 x 0.25 mm3 Enclosure - IP54 Temperature - -30 to +90°C Medium density - > 500 kg/m3 Max. Pressure - 10 bar Mountig direction - vertical, ± 30° Tube length L - fixed Tube length (し=45 mm) Process connection - M16X1.5 Material - POM/Buna

Catalogs

No catalogs are available for this product.

See all of Trimod'Besta‘s catalogs
