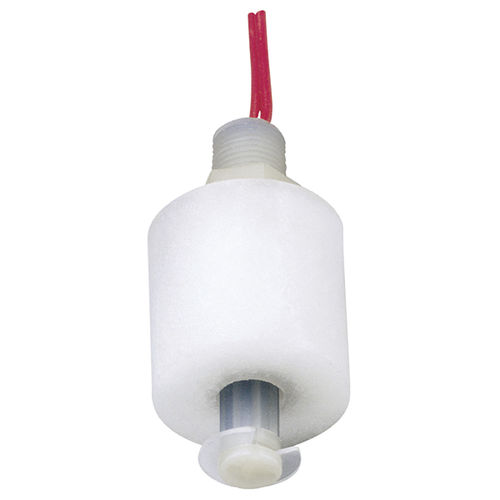

Float level switch LS-3
for boatspumpfor tanks

float level switch
float level switch
Add to favorites
Compare this product


Characteristics

Technology
float
Application domain
for boats
Applications
pump, for tanks

Description

Compact plastic construction – reliable and cost effective with NPT or G thread. Available with FDA/NSF approved materials on request. Opener / Closer: SPST 50 VA/0.5A/250 VAC Change-over switch: SPDT 20 VA/0.5A/250 VAC Switch functionfactory: setting is NO (normally open) NO or NC (normally closed) can be selected by reversing the float Fly lead / cablePVC, AWG 22, Length 60 cm / PVC, 0.34 mm Enclosure: IP64 Temperature: Cable: -40 to +80°C Fly lead: -40 to +121°C Medium density: ≥ 450 kg/m³ Pressure: max. 3 to 10 bar Mountig direction: vertical Tube length L: fixed Tube length (L=54 mm) Process connection: BSPP 1/8" / 1/8" NPT / M12x1.75
