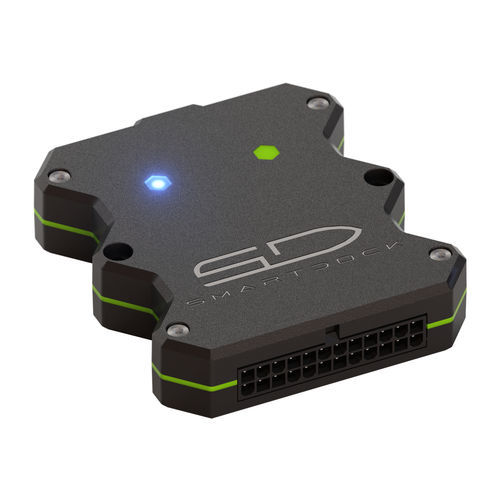

Thruster control unit SMARTDOCK TCU

for boat

The SMARTDOCK TCU controls the bow and/or stern thrusters via the app, enabling precise and safe maneuvering in all directions.

Key features:

• Plug and play – fast self-installation
• Intuitive control from anywhere on board
• Real-time feedback via the intuitive app
• Integration with the ECU and SMARTDOCK app
• Compatible with leading thruster manufacturers

Technical data (TCU):

Power supply: 12/24 V DC
Power consumption (12 V): < 700 µA
Max. output current (12 V, 120 s): 4.5 A
Max. output current (12 V, continuous load): 3.3 A
Max. activation time: 120 s (followed by a 30 s pause)
Max. temperature range: -40 to 68 °C
Dimensions: 84 × 98 × 21 mm (W × H × D)
Weight: approx. 96 g
