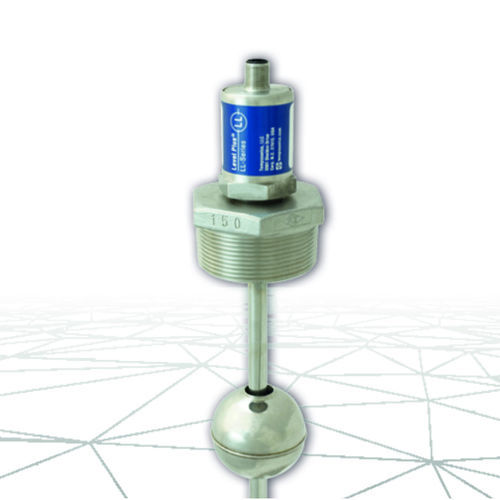

Level sensor LLE

for boat

Overview
The Level Plus LLE liquid level transmitter provides accurate measurement of product and/or interface level in a compact mechanical design. Optional integral temperature measurement is available via a straight RTD output. The transmitter is designed for long-term operation with no scheduled maintenance or recalibration for an expected 10-year service life.

Mounting & Connections
The LLE mounts to most tanks and is offered with NPT and RF flanged connections from 3/4" to 6". The model number includes selection options for float, cable and stop collar to suit a range of tank and fluid conditions.

Key Features

• Product and interface level measurement
• No scheduled maintenance or recalibration required (expected 10-year life)
• Inherent accuracy ±0.5 mm
• Environmental protection IP69K
• 100 g shock / 15 g vibration
• Optional integral temperature measurement (RTD output)

Specifications (from Specifications tab)
Output: Analog / SSI / CANbus / IO-Link
Linearity: ±1 mm
Measuring Range: 156…2646 mm (6.2…104.2 in.)

Documents available on this page
Data sheet, Operation Manual, Product Brief and CE certificate (PDFs) are provided for the LLE transmitter.

Technical characteristics / Specifications

• Model family: Level Plus LLE
• Measured quantities: Product level and/or interface level
• Optional temperature: Integral straight RTD output available
• Outputs: Analog; SSI; CANbus; IO-Link
• Linearity: ±1 mm
• Inherent accuracy: ±0.5 mm
• Measuring range: 156…2646 mm (6.2…104.2 in.)
• Connections: NPT and RF flanged connections, sizes from 3/4" to 6"
• Environmental protection: IP69K
• Shock / Vibration: 100 g shock, 15 g vibration
• Service life / Maintenance: Expected 10 year life; no scheduled maintenance or recalibration required
• Mechanical options: Float, cable and stop collar selections included in model number
• Typical applications: Process control in industrial environments, tank mounting for level monitoring
