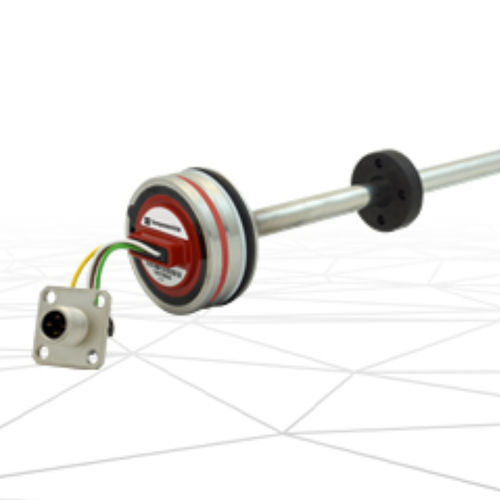

Motion sensor MH-Series EMBEDDED (MH)

positionmarinemachine

Overview
Temposonics® MH-Series EMBEDDED (MH) linear position sensors measure the absolute position of hydraulic cylinders in mobile applications. They are engineered for embedding within cylinder housings and for fully sealed installations to withstand harsh working conditions.

• Designed for full sealing and embedding in hydraulic cylinders
• Features the proprietary DT connector system and M12 connector system enabling IP69K protection
• Outputs available: Analog, CANbus, PWM

Benefits
Provides precise absolute position feedback for accurate motion control. Improves machine productivity and operator safety while reducing maintenance and downtime through reliable sealed integration suitable for mobile and off-road equipment.

Specifications (table)
Output | Stroke Length | Resolution
Analog | 50–2500 mm | 0.1 mm
CANbus | 50–2500 mm | 0.1 mm
PWM | 50–2500 mm | 0.1 mm

Technical data

• Model: MH-Series EMBEDDED (MH)
• Manufacturer: Temposonics®
• Application: Absolute position measurement of hydraulic cylinders in mobile applications
• Stroke length (available): 50–2500 mm
• Resolution: 0.1 mm
• Outputs: Analog, CANbus, PWM
• Connector systems: DT connector system, M12 connector system
• Protection/Sealing: Designed for full sealing and embedding; supports IP69K with appropriate connector
• Designed to increase machine productivity and reduce maintenance/downtime
