Battery charger TM-25x-v4

marinewaterproof

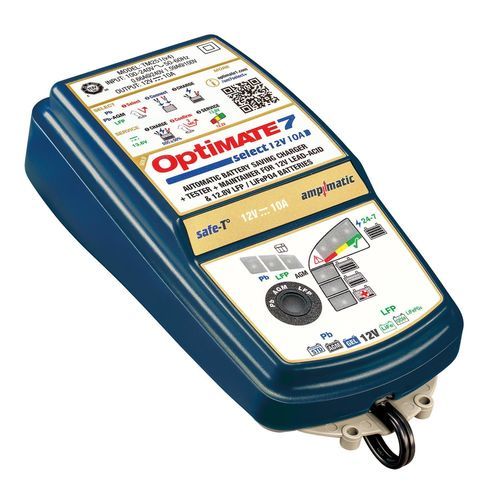

Overview OptiMate 7 Select (version 4) is a fully automatic 12V battery charger, saver, tester and maintainer for Pb (lead‑acid), AGM and lithium LFP batteries. It uses a multi‑step automatic program to bring batteries safely to full charge without supervision. SAVE recovery mode can recover deeply discharged batteries from as low as 0.5 V. Service (Power Supply) mode provides constant battery support for vehicle tuning, diagnostics, troubleshooting or showroom use. With LFP selected, a 3‑second pushbutton attempts BMS reset for lithium batteries with Low Voltage Disconnect.

Battery modes

• Pb (standard lead‑acid, flooded / EFB / GEL): 14.4 V
• AGM (premium AGM batteries): 14.7 V
• LFP (LiFePO4 12.8/13.2 V): 14.3 V

Operation & key behaviors

• Selected mode retained in memory if AC power is lost
• Ampmatic automatic current adjustment to match battery size and condition (10 A charging current)
• Temperature compensation: voltage raised when cold, reduced when hot; LFP current reduced outside safe charging temperature
• Safe to leave connected: full electronic protection, spark suppression, automatic shutdown on short‑circuit or battery disconnection
• Service (Power Supply) mode: constant battery support for tuning, diagnostics and troubleshooting

More features Suitable for 12V automotive starter (SLI) batteries including STD (with filler caps), AGM, GEL (sealed VRLA) & EFB and 4‑cell LFP (LiFePO4) 12.8/13.2V. Automatically adjusts current to battery size and condition. Connect & forget operation for maintenance charging and long‑term storage. Saves dead batteries from 0.5 V and performs a state‑of‑health test during/after charge. Energy efficient design with Power Factor Correction and synchronous rectification. Weatherproof construction rated for use down to -40°C / -40°F.

Includes

• Battery connection cable accessory (battery clip set supplied)
• Battery clips with fuse (replacement SKU O-34)

Models / Versions

• TYPE A: TM251 (v4) – Canada / United States
• TYPE C: TM250 (v4) – Europe
• TYPE G: TM252 (v4) – United Kingdom

Technical specifications

• IDEAL FOR: AGM, GEL, STD & EFB 12V batteries 3–240 Ah; LITHIUM LFP (LiFePO4) 12.8/13.2V batteries 2–120 Ah
• CHARGING AMPS: 10 A (Ampmatic automatic)
• CHARGING VOLTS (selectable): Pb 0.5 V → 14.4 V; Pb‑AGM 0.5 V → 14.7 V; LFP 0.5 V → 14.3 V
• STEPS: 9‑step fully automatic program
• OPERATION: selectable modes; selection retained in memory
• FEATURES: SAVE recovery (from 0.5 V + 2‑step desulphation), Service mode (constant support), battery test (state‑of‑health)
• USE: Indoor / Outdoor (to -40°C / -40°F)
• INPUT: Global 100–240 V 50–60 Hz, high efficiency (CEC listed)
• STYLE: Weatherproof case with wall mounts; 180 cm AC supply lead and 180 cm charge lead with SAE connector
• SAFETY: No risk of overcharging; vehicle‑electronics safe; sparks suppressed; automatic shut‑down on short‑circuit or battery disconnection
• INCLUDED: Battery clip set
• WARRANTY: 3‑year limited replacement warranty
