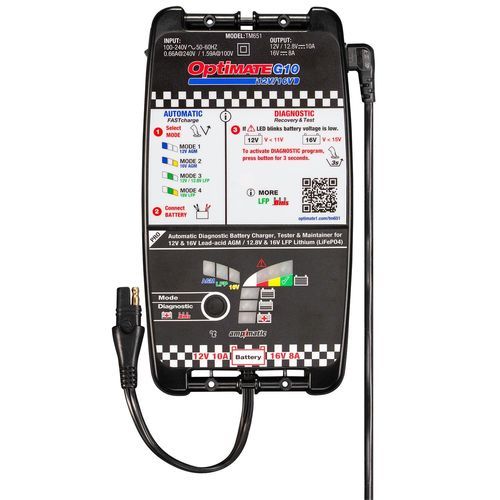

Battery charger OptiMate G10

marineportablefast

Overview

• PRO series: 12V 10A / 16V 8A battery charger designed for racing/performance 12V & 16V AGM lead‑acid batteries and 12.8V/13.2V & 16V LiFePO4 (LFP) batteries.
• Four selectable charge modes: 12V AGM, 16V AGM, 12.8V/13.2V (4s) LFP and 16V (5s) LFP.

Key functions

• FASTcharge: automatic high‑power program to quickly charge a partially discharged battery; flashing green indicates >90% charged and ready to use.
• FASTcharge while engine running: provides battery support during engine operation.
• DIAGNOSTIC program: can recover a completely discharged battery from as low as 0.5 V; manual activation available when battery is too low for FASTcharge.
• DIAGNOSTIC Ampmatic option: preselect for controlled Ampmatic charging of smaller batteries (below 25 Ah for AGM and 9 Ah for LFP); charge current is automatically regulated to battery size.
• Pushbutton BMS reset for 12.8V / 13.2V / 16V LiFePO4 batteries with resettable low‑voltage/deep‑discharge protection.
• PowerSupply mode for vehicle tuning and controlled supply.

Connections and safety

• Connect to battery using SB‑50 adapter (grey & red) or fused battery clips; each output protected with a 25 A fuse.
• 15 cm / 6" output cord; AC Class II input socket with ON/OFF switch; case with rubber bumpers; wall‑mount or hanging hook included.

More features (high level)
Global input: 100–240 V 50–60 Hz.
AC power socket: accepts Class II power cords.
Certifications: CE, UKCA, NRTL (UL & CSA), PSE (Japan), SAA (Australia & NZ).
Portable use: vehicle hanging hook and wall receiver included.

Included accessories

• Region‑matched AC power cable.
• Output cable extender (replacement SKU O‑43, 180 cm / 72").
• Fused battery clips (replacement SKU O‑34).
• SB‑50 fused cable (replacement SKU O‑75).
• Wall storage receiver and handlebar hanging hook.

Models / AC cord options

• Single model with regional AC cord options: Type A (Canada/USA), Type C (Europe), Type G (UK), Type I (Australia/NZ).

Notes on voltages and charging

• AGM (lead‑acid) charge voltage set for premium AGM: 2.45 V per cell → 14.7 V for 12 V AGM and 19.6 V for 16 V AGM (operational ranges noted by mode).
• LFP (LiFePO4) charge voltage set at 3.6 V per cell → 14.4 V for 12.8V/13.2V (4s) and 18.0 V for 16 V (5s).

Technical specifications

• SKU: TM‑651.
• Category: Battery Chargers.
• Ideal for: 12 V AGM lead‑acid (STD & AGM) 3–240 Ah; 12.8V/13.2V LFP 2–120 Ah. Also supports 16 V AGM and 16 V LFP in same ranges.
• Charging current: 0.4 A to 10 A variable (Ampmatic).
• Charging voltage ranges: 0.5 V up to mode‑dependent maximum (12 V AGM / 12.8V LFP up to ~14.4–14.7 V; 16 V AGM / 16 V LFP up to ~18–19.2 V).
• Operation: selectable modes; 8‑step charge algorithm.
• Use rating: Indoor, IP40.
• Input: Global 100–240 V 50–60 Hz, high efficiency.
• Physical: case with rubber bumpers; wall‑mount or hanger bars; 15 cm output cord.
• Included cables: regional Class II AC cord, O‑43 ext. (180 cm), O‑34 fused clips, O‑75 SB‑50 fused cable.
• Warranty: 2‑year limited repair/replacement warranty.
