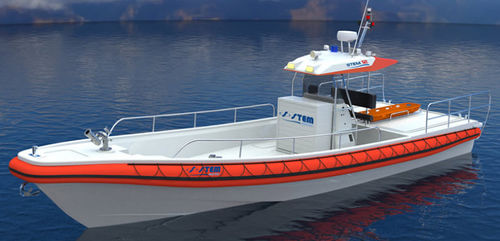

Patrol boat STEM 12
work boatpassenger boatrescue boat

patrol boat
patrol boat
patrol boat
Add to favorites
Compare this product

Characteristics

Type
patrol boat, work boat, passenger boat, rescue boat, military boat, crew boat, dive support boat, service boat, wind farm service boat, ambulance boat
Motor type
inboard waterjet, stern-drive, outboard, diesel
Other characteristics
medical, trailerable, hard-top cabin-cruiser, rigid hull inflatable boat
Length

Max.: 13 m (42'07")

11.95 m (39'02")

Min.: 11 m (36'01")

Passenger capacity

Max.: 22 unit

Min.: 3 unit

Description

High performance multi-functional open boat for patrol, rescue and firefighting TECHNICAL SPECIFICATIONS Design categoryB - (A) Hull length11.95 m Length overall12.65 m* Width overall3.62 m Empty displacement9800 kg* Payload (people included)1800 kg Fuel tank2 x 500 l Inox MAIN FEATURES Hull and deck in GRP and vinylester resin with Kevlar layers, moulded in vacuum infusion Wide bridge deck with work areas protected by stainless steel handrails on the perimeter Custom configurations on demand "D" shape pneumatic fender made of high resistance Hypalon®-Neoprene 1670 dtex acting as buoyancy reserve and bumper Hull still floating with deflated tubes Self-draining deck from standstill Hydraulic steering Double two-lever engine and waterjet controls, 2 single-lever controls for gearbox Courtesy light on stern for bridge deck 1 bollard (bow) 4 Hoisting hooks 6 Mooring cleats 2 Towing hooks at stern and 1 at bow Stainless steel handrails on the perimeter GRP Hard-top on a stainless steel frame equipped with built-in bow lights Navigation lights/mooring light 1 repair kit Horn Electronic battery charger with socket for shore power 1 12V cc cigarette lighter plug and 1 12V cc watertight plug 4 electric bilge pumps with control panel with acoustic and visual alarm Double seat Pilot/co Pilot (bolster) Pilot console with hatches for access to electrical connections and a large locker at the base
