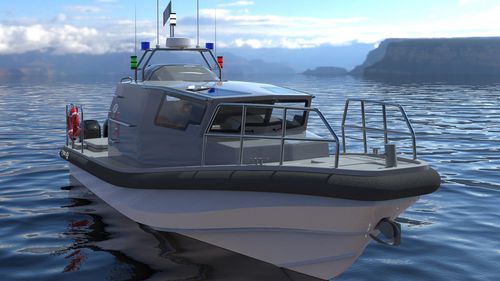

High Performance multifunctional boat for patrol, rescue and firefighting
TECHNICAL SPECIFICATIONS
Design categoryB
Hull length10.30 m
Length overall (Vers. A)11.05 m*
Length overall (Vers. B)11.95 m*
Widht with deflated tubes3.14 m
Width overall3.60 m
Empty displacement5200 kg*
People capacity (Vers. A)12
People capacity (Vers. B)12
Tube sectors7
Fuel tank2 x 300 l inox
STANDARD FEATURES
Hull and deck in GRP with vinylester resin and Kevlar layers, moulded with vacuum infusion system
Specific for emergency manoeuvring in shallow waters
Rapidity of manoeuvring ( consecutive inversions, veers, rotations, etc)
Possibility to customize configuration
Version “A”: "D" shaped pneumatic fender made of high resistance Hypalon®–Neoprene 1670 dtex, acting as buoyancy reserve and bumper
Version “B”: Pneumatic tube made of high resistance Hypalon®–Neoprene 1670 dtex
Floating hull with deflated tubes
Self-draining deck
Hydraulic steering
Double bilever commands for engines and waterjets
Work bollard on the bow
4 Hoisting rings
6 Mooring cleats
2 Towing hooks at stern and 1 at bow
Two large lockers under the deck
Stainless steel handrails on the perimeter (only for version "A")
Stern platform in stainless steel equipped with a dive ladder also in stainless steel
Mooring line with electric windlass
Navigations lights and mooring light
Acoustic warning
Hard Top in GRP with stainless steel support frame, complete with bow lights
Double bolster seat
Pilot console with hatches for access to electrical connectionsand two small lockers
