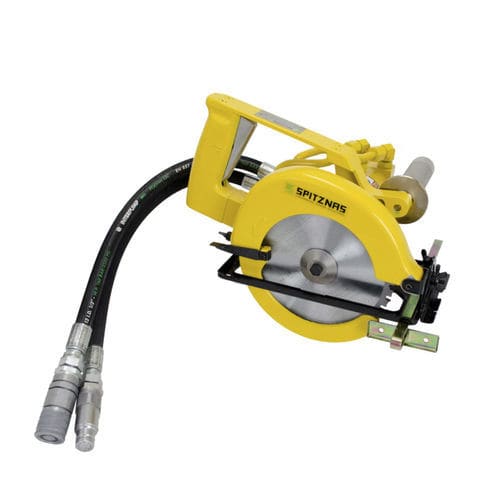

Circular saw 5 1128 0010

The hydraulic circular saw for universal use, as well for underwater use. ATEX Specification - II2GExhIIBT5Gb Operating pressure - 140 Bar Volume flow - 20 l/min Power - 2.3 Max. saw blade dia. - 180.00 mm Speed (free) - 3.200 rpm Cutting depth at 90°/45° - 60.0/35.0 mm Center dia. for saw blade - 16.0/19.0/20.0/30.0 mm Connection - SAE Port No. 8 (3/4x16UNF-2B) mm Hydraulic hose connection - Flat-Star A250-OM/OF-1/2”BSP Hydraulic medium - Hydraulic oil Hydraulic circuit type - open circuit Oil filtration class - ISO-level of purity 20/18/13 Temperature of oil - -34 bis +82 °C Viscosity of oil - >13 centistokes Noise level LpA - 85.0 dB(A) Noise level LWA - 96,0 dB(A) Vibration level - <2.5 m/s² Weight - 10.2 kg Fields of application / branch - Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work
