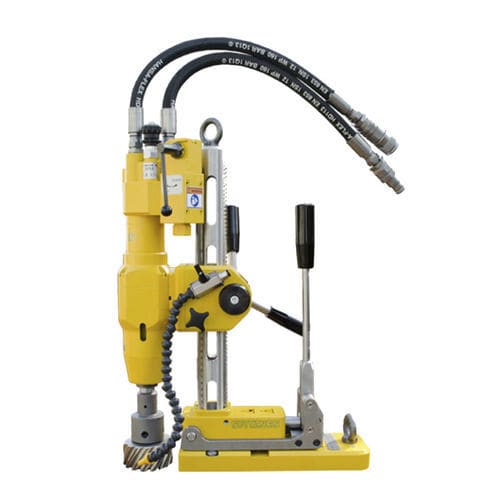

Magnetic underwater drill 2 1345 0010

hydraulic

The powerful hydraulic magnetic core drill for drilling up to dia. 100 mm as well for underwater operation. ATEX Specification - II2GExhIIT5Gb Energy source - Hydraulic Operating pressure - 140-180 bar Direction of rotation - left/right Max. drill bit dia. - 12.00-100.00 mm Max. spiral drill dia. - 31.75 mm Max. tap dia. - M30 mm Max. reaming dia. - 31.00 mm Max. plummet dia. - 50.00 mm Stroke - 300.00 mm Tool holder - MT3 Speed (free) - 40-250 rpm Magnetic force - 850 kg Power - 2.50 kW Volume flow - 20-23 l/min Dimensions - 392x198x547-724 mm Dimensions of magnetic foot - 300x100 mm Connection - SAE Port No. 8 (3/4x16UNF-2B) mm Water cooling connection - R1/4"female Hydraulic hose connection - Flat-Star A250-OM/OF-1/2”BSP Hydraulic medium - Hydraulic oil Hydraulic circuit type - open circuit Oil filtration class - ISO-level of purity 20/18/13 Temperature of oil - -34 up to +82 °C Viscosity of oil - >13 centistokes Noise level LpA - 79.8 dB(A) Noise level LWA - 91.0 dB(A) Vibration level - <2.5 m/s² Weight - 22.5 kg Fields of application / branch - Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work
