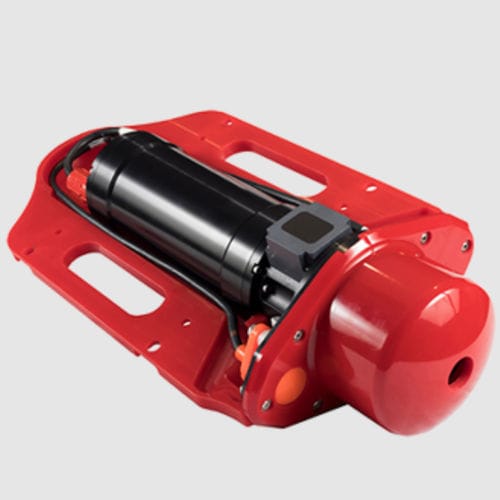

Ship sonar FS80

side scan

How do you take a reliable, easy-to-use, cost-effective trawl sonar like the FS70 and make it even better? The answer is the Simrad FS80. Both smaller and lighter than the FS70, the FS80 is designed from the ground up to be even more robust, versatile, and feature-rich. The FS80 features a net profiler with multifrequency capabilities to accommodate different types of fisheries within a single sonar. Robust, versatile, and feature-rich Both smaller and lighter than the FS70, the Simrad FS80 is designed from the ground up to be even more robust, versatile, and feature-rich. The FS80 features a net profiler with multifrequency capabilities to accommodate different types of fisheries within a single sonar. In addition to the net-opening view provided by the single-beam sonar, up-sounder and down-sounder views are also included. Two down sounders monitor the footrope, the sea bottom, and fish entering the net. The up sounder monitors the headrope and fish escaping above the net. This combination of sonar and sounders allows the operator to see the complete net opening, including individual fish targets in the vertical plane, the fish/school location, the bottom/net location, and the net geometry. Pitch and roll sensors are integrated Pitch and roll sensors are integrated into the headrope unit to monitor the position and orientation of the FS80 in the water. We have also included depth and temperature sensors. These sensors monitor the environmental conditions and the physical position of the FS80 in the vertical water column.
