GPS multi-purpose instrument ShipView R3

echo sounderfor boatfixed

Summary
ShipView R3 is a round 3" (7.7 cm) multifunction touchscreen that integrates DPS control, anchoring management, depth alarms and shallow/deep-water alerts into a single instrument designed for marine use. Also referenced as CPR3.

Main functions

• DPS control: operate from a fixed point, even with the remote off. Displays real-time position accuracy and motor/propeller activity commanded by the DPS to support monitoring and adjustment.

• Simplified anchoring: windlass control, chain counter and automatic scope calculation. Intuitive graphical anchoring view enables correct chain amount at a glance.

• Depth alarm: protects the vessel against unexpected shallow bottoms.

• Shallow and deep water alerts: navigation aids to anticipate hazards and support decision-making.

• Marine-ready display: sun-readable (~850 nits), multilingual and IP67 rated.

Anchoring mode (detail)
In anchoring mode the ShipView R3 (CPR3) combines chain counter, direct windlass control and configurable depth alarms on a single screen. It shows chain out length, depth under keel and the scope ratio, and provides a realistic graphical view of the vessel, seabed and anchor.

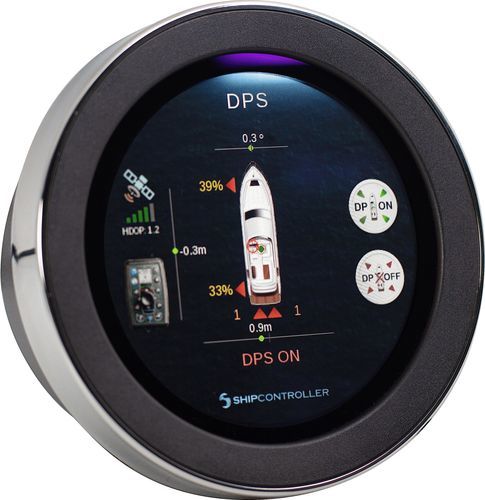

DPS mode (detail)
In DPS mode the screen displays real-time thrusts applied by motors and propellers, GNSS status and position/heading errors. The DPS can be enabled or disabled from the display with one touch, giving the helm clear visualization and immediate control of dynamic positioning.

Features / technical specifications

• Screen size: 3" (7.7 cm), round format.
• Multifunction touchscreen.
• Visibility: approx. 850 nits (sun-readable).
• Ingress protection: IP67.
• Multilingual interface.
• Main functions: DPS control, anchoring management (chain counter, windlass control, automatic scope calculation), depth alarms, shallow/deep water alerts.
• Graphical anchoring view: vessel, seabed and anchor visualization.
• Real-time display of motor/propeller thrusts and GNSS status.
• DPS activation/deactivation from the screen.
• Alternate reference: CPR3.
