Boat deck hatch HL series

for yachtsquareflush

Overview

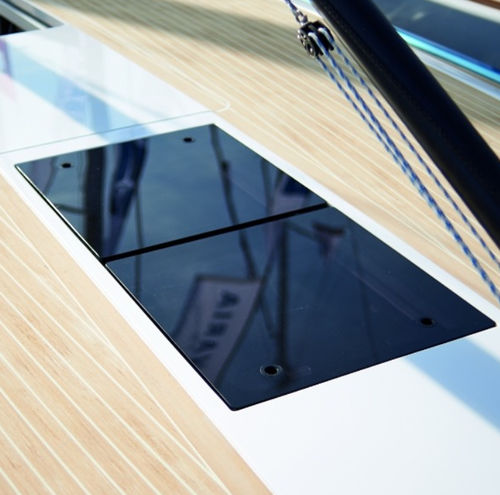

Flush deck hatches designed for easy and quick fitting. Lower framework in CNC-machined aluminium with matte black anodize finish. Window in 12 mm smoke-grey acrylic. Opening is assisted by gas springs, adjustable at any position and invisible from the interior. Handles in silver-anodized CNC-machined aluminium with safety lock; external opening via slot compatible with a winch handle. CE approved in category A for areas IIa, III and IV. Fixed by bonding to the deck and concealed screws.

Products in HL type

• HL330-330 P – Flush Hatch 330×330 mm – Slim
• HL512-512 P – Flush Hatch 512×512 mm – Slim
• HL580-580 P – Flush Hatch 580×580 mm – Slim
• HL700-700 P – Flush Hatch 700×700 mm – Slim

Technical specifications

• Type: Flush deck hatch, slim version
• Lower framework: CNC-machined aluminium, matte black anodized
• Window: Acrylic glass, smoke grey, 12 mm thick
• Opening mechanism: Gas springs, adjustable in each position, concealed from inside
• Handles: CNC-machined aluminium, silver anodized, with safety locking
• External opening: Slot compatible with winch handle
• Approvals: CE approved in category A for areas IIa, III, IV
• Fixing: By bonding to the deck and hidden screws
• Available nominal sizes: 330×330 mm, 512×512 mm, 580×580 mm, 700×700 mm
• Key features: Flush installation; concealed internal fittings; quick and simple fitting process
