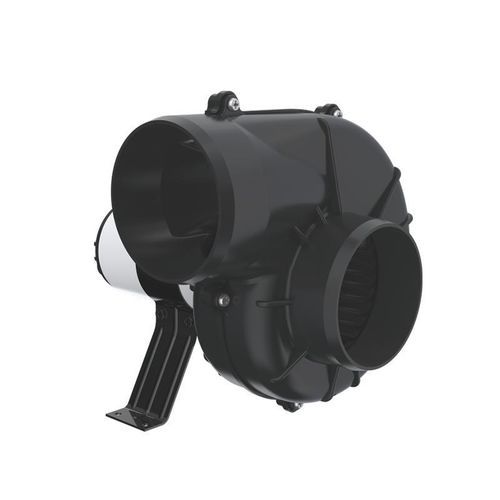

Boat blower SFBB1-250-04

boatmarinebilge

Product name
04 series Bilge blower 250 CFM

Overview
Provides ventilation for engine compartments, galleys, bilges and heads. Designed for efficient, high output operation, these blowers feature exclusive front and rear shaft seals and corrosion resistant motor housings, white MPPO plastic construction for long life and use in the marine environment.

Key features & benefits

• Rugged corrosion resistant MPPO plastic housing
• Universal flex mount bracket permits outlet to face any direction
• Mounts on any flat surface
• Slide-in duct connection
• High-efficiency, high-volume airflow
• Low-current draw, ignition protection
• Mounting brackets are made of cold rolled galvanized sheet (SPCD) metal
• CE: Conforms with EN50014-1, EN61000-3-3 standards

Standard configurations (table)
Model | Voltage | Air Flow | Current(A) | Fuse
SFBB1-250-04 | 12V | 250/425 | 12.0A | 15.0A
SFBB2-250-04 | 24V | 250/425 | 6.0A | 10.0A

Additional notes
Snail blower, flange fixed fan, eddy current fan, curved fixed fan

Technical specifications

• Model: SFBB1-250-04 (also variant SFBB2-250-04)
• Voltage: 12V (SFBB1-250-04); 24V (SFBB2-250-04)
• Air Flow: 250 / 425 CFM
• Current: 12.0A (SFBB1-250-04); 6.0A (SFBB2-250-04)
• Recommended fuse: 15.0A (SFBB1-250-04); 10.0A (SFBB2-250-04)
• Housing: corrosion resistant white MPPO plastic
• Seals: front and rear shaft seals
• Mounting: universal flex mount bracket; mounts on any flat surface; slide-in duct connection
• Mounting bracket material: cold rolled galvanized sheet (SPCD) metal
• Applications: ventilation for engine compartments, galleys, bilges and heads
