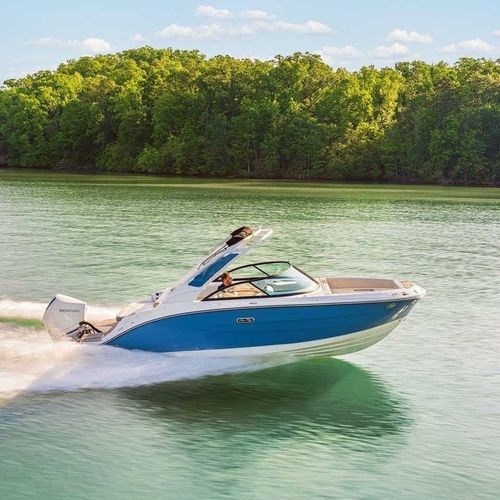

Outboard runabout SDX 230 Outboard

dual-consolebowrideropen

The Sea Ray SDX 230 Outboard is a 23-foot (7.16 m) trailerable sport boat designed for easy launching, efficient storage and flexible onboard layouts. It offers configurable propulsion, color schemes and accessory packages to suit watersports, day cruising and family use.

Design & onboard features

• Modern cockpit layout and refined finishes with a curved windshield and sculpted hull for clear deck flow.
• Adaptable seating arrangements and integrated storage to facilitate movement between deck and water.
• Dedicated storage compartments for towels, coolers and watersports equipment; conversation-oriented cockpit configuration.
• Optional dual 9" digital displays and an ergonomic helm with modern connectivity and control options.

Power & performance

• Standard outboard setup providing straightforward maintenance access.
• Standard engine: Mercury® 200 FourStroke with Digital Throttle and Shift (200 hp).
• Optional propulsion: Mercury® 250 Verado® FourStroke (250 hp); outboards available in multiple finishes.
• Outboard installation enables trim-up capability and improved operation in shallow or variable-depth waterways.

Options & customization

• Available bundles: Comfort Bundle, Entertainment Bundle, Essentials Bundle, Lighting Bundle.
• Color schemes: Full Hull, Hull Side (examples: Arctic White, Onyx Black, Sea Ray Blue, Rally Red, Horizon, Quantum Blue, Kingfisher Teal, Neo Mint Green).
• Choices for full hull, hull side or hull bottom color finishes.
• Upholstery options: Cockpit vinyl colors (Dune — tan base with brown accent; Stone — gray base with dark gray accents).
• Flooring: Infinity Luxury Woven Vinyl (snap-in) — Brown or Gray; SeaDek® for bow and cockpit — Brown or Gray.
• Propulsion finishes: Mercury® 200 FourStroke (200 hp) standard; Mercury® 250 Verado® FourStroke (250 hp) available in Black or White.
• Towers & canvas: Bimini top and boot, mooring cover, manual sunshades, optional electric folding watersports tower (Black or White), optional fiberglass accent panels.
• Electronics: 1st Mate Marine Safety & Security System (available); Dual Digital Dash with SmartCraft Connect (9").
• Additional options: Bow walk-through door, electric trim tabs with indicator, upgraded interior upholstery, bow ladder with hatch, onboard battery charger (120V/60 to 12V), pump-out head, ski tow pylon.
• Trailer options: Painted or Galvanized Tandem Axle Trailer with bunks and tandem axle disc brakes.

Warranty & support

• Sea Ray SURPA5S+ five-year factory warranty (bow-to-stern) for qualifying Sport Boats+ models; Sport Boats+ also include a Limited Lifetime Structural Hull/Deck Warranty to the original owner (limitations and region-specific terms apply).

Technical specifications

• Length Overall: 7.16 m
• Beam: 2.59 m
• Fuel Capacity: 227 L
• Draft (trim down): 89 cm
• Draft (trim up): 56 cm
• Dry Weight: 2020 kg
• Deadrise: 21°
• Holding Tank: 9.8 L
• Capacity: 13 people / Maximum payload: 3000 lb
