Inboard runabout SDX 230 Surf

dual-consolebowrideropen

Overview

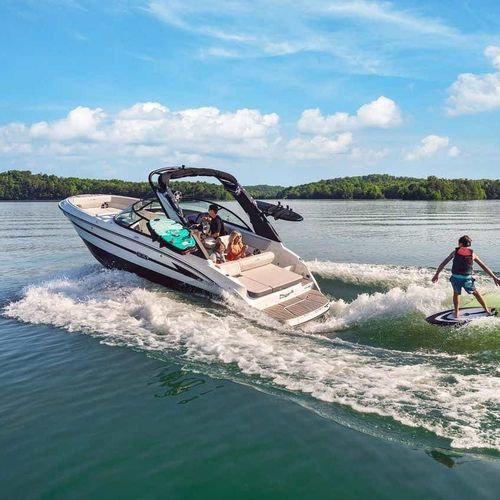

The Sea Ray SDX 230 Surf is a 23-foot (7.06 m) trailerable surf boat engineered for wakesurfing, family comfort and precise handling. It combines a surf-optimized hull and NEXTWAVE™ Surf System with lounge-style accommodations, forward-facing propulsion and digital helm controls to deliver safe, repeatable wakes and comfortable day trips.

Key features

• NEXTWAVE™ Surf System: dedicated surf technology for consistent, surfable wakes.
• Surf-specific hull and tapered transom to shape controllable waves for all skill levels.
• Forward-facing propulsion with digital controls for refined handling and safer propeller placement for riders.
• Mercury® MerCruiser® power with Bravo Four S® forward-drive and contra-rotating props for smooth acceleration and efficient performance.
• Integrated hard ballast tanks (individually fillable/drainable) to tune the wake without reducing storage.
• Spacious 23-foot layout with lounge seating, expanded bow sunpad and built-in cooler for extended days on the water.
• Swim platform with optional manual submersible step; aft seat converts to a wide sunpad with convertible backrest.
• Built-in watersports interface: adjust speed, wave steepness and length, change ride side and control ballast for repeatable wakesurf setups.

Available options and packages

• Accessory bundles: Comfort, Entertainment, Essentials, Lighting.
• Color schemes: Full Hull, Hull Side and Highline palettes (examples: Arctic White, Onyx Black, Sea Ray Blue, Rally Red, Horizon, Quantum Blue, Kingfisher Teal, Neo Mint Green).
• Upholstery and flooring choices (e.g., Dune, Stone; Infinity Luxury Woven Vinyl snap-in or SeaDek® in bow & cockpit).
• Towers & canvas: manual sunshades, electric folding watersports towers (black or white) with bimini, accent panels and board racks.
• Electronics & safety: optional 1st Mate Marine Safety & Security System; Simrad-compatible helm displays and customizable helm controls.
• Additional options: bow walk-through door; automatic fire suppression (FM200); interior upholstery upgrades; bow ladder with hatch; onboard battery charger; pump-out head; transom trim switch (sterndrive).
• Trailer options: painted or galvanized tandem-axle trailer with bunks and tandem-axle disc brakes.

Specifications

• Length Overall: 7.06 m
• Beam: 2.59 m
• Fuel Capacity: 227 L
• Draft (trim down): 114 cm
• Draft (trim up): 91 cm
• Dry Weight: 2313 kg
• Deadrise: 21°
• Holding Tank: 9.8 L
• Ballast Capacity: 471 kg
• Capacity: 12 people / Maximum: 1636 lb
