Cruising motor yacht 510 GTS

hard-top3-cabin7-berth

OVERVIEW

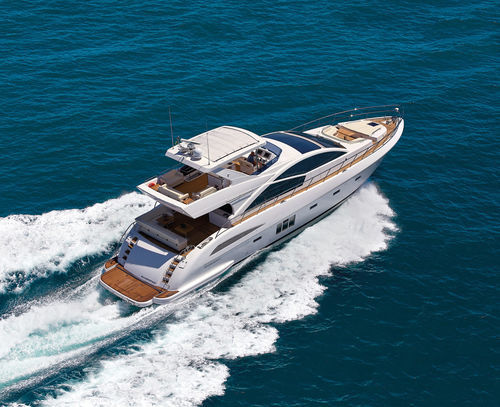

The Schaefer 510 GTS is a 15.82 m motor yacht featuring a carbon fiber hard top that delivers a sporty profile and one of the largest openings in its class. It offers multiple interior layouts for up to 3 suites and a midship master cabin, plus a large aft deck with an integrated gourmet area and foldable platforms for direct sea access.

ON BOARD
Foldable platforms at the stern provide direct contact with the sea and extended leisure space. The levelled deck enables smooth circulation between the aft deck and the salon. Large windows provide ample natural light to accommodation areas. The salon option with double-height ceiling enhances visual connection with sky and sea.

LAYOUT
Midship master suite; three internal layout options configurable up to 3 suites; large aft deck with integrated gourmet area and platform; carbon fiber hard top with wide opening that defines the yacht's sporty finish.

NAVIGATION TECHNOLOGY
Equipped with modern navigation systems including multi-touch panels, joystick driving and advanced sensors to facilitate precise control and an easy-boating experience.

TECHNICAL SPECIFICATIONS

• Overall length: 15.82 m (51.9')
• Maximum beam: 4.36 m (14.3')
• Maximum draft: 1.26 m (4.1')
• Light displacement: 18,300 kg (40,34 lbs)
• Maximum height from waterline to highest point: 4.95 m (16.3')
• Deadrise at stern: 17°
• Fuel capacity: 1,300 L (343 Gal)
• Fresh water capacity: 470 L (124 Gal)
• Maximum persons: 16
• Berths / overnight: 6+1
• Designer: Marcio Schaefer
